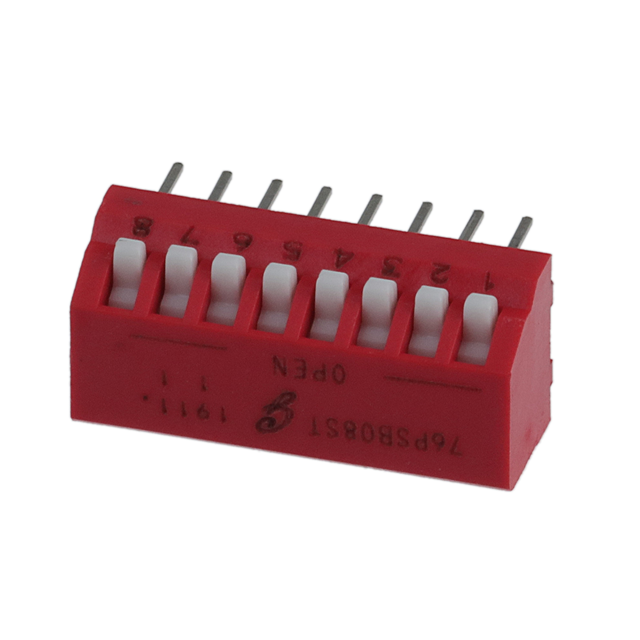

76PSB08ST Real Image
Same model may have multiple batches, images only for reference.

76PSB08ST

Part No 76PSB08ST
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 150MA 30V
Datasheet
76PSB08ST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Grayhill Inc.
Series 76
Packaging Tube
Circuit SPST
Number of Positions 8
Current Rating 150mA
Voltage Rating 30VDC
Actuator Type Piano
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.301" (7.65mm)
Mounting Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Body Material Thermoplastic
Length 0.880" (22.35mm)
Operating Temperature Range -40°C ~ 85°C
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Win Source Part Number 766160-76PSB08ST
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 76PSB08ST CAD Model

Description

The Grayhill 76PSB08ST is a high-quality switch that is widely used in various electronic applications.

  • Circuit: SPST
  • Actuator Type: Piano
  • Actuator Level: Raised
  • Temperature Range: -40°C to 85°C
