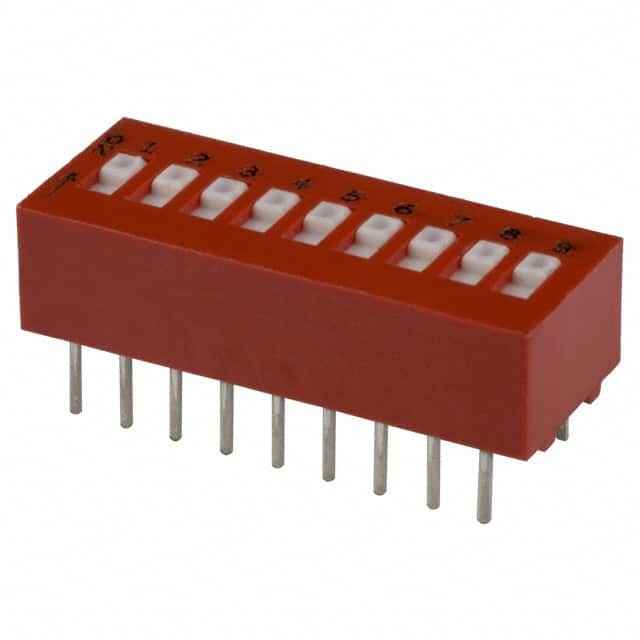

Part No 78RB09ST
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 150MA 30V / Dip Switch SPST 9 Position Through Hole Slide (Standard) Actuator 150mA 30VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Grayhill Inc.
Series 78
Package Tube
Product Status Active
Circuit SPST
Number of Positions 9
Current Rating (Amps) 150mA
Voltage Rating 30VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.265" (6.73mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Thermoplastic
Length 0.980" (24.89mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number 78RB09
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 858259-78RB09ST
Ultra Librarian 3D Model Ultra Librarian 78RB09ST CAD Model

Description

The 858259-78RB09ST is a DIP switch in the switches - DIP switches category.

  • Category: Switches - DIP Switches
  • Series: 78
  • Positions: 9
  • Pitch: 0.100" (2.54mm)
  • Termination Style: PC Pin
  • Seal: Tape Seal
  • Contact Finish: Gold
  • Voltage Rating: 30VDC
  • Current Rating: 150mA
  • Washable: Yes
  • Mechanical Life: 2,000 cycles
  • Mounting: Through-Hole
  • Manufacturer: Grayhill Inc.
  • Status: Active
