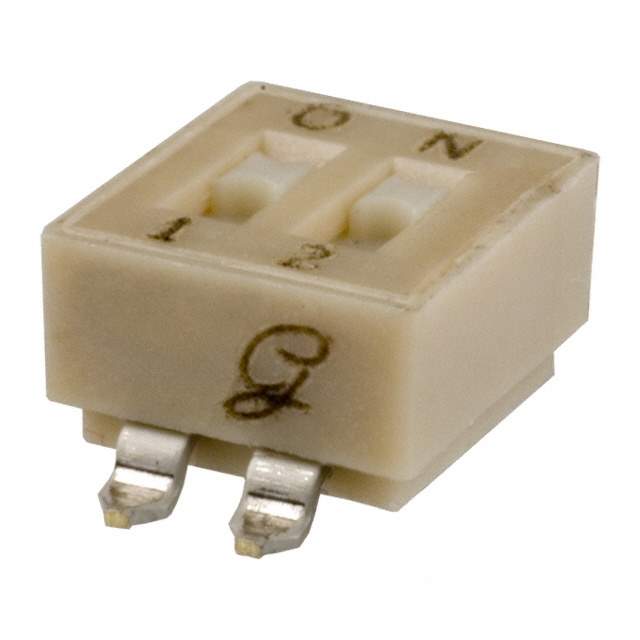

90HBW02PRT Real Image
Same model may have multiple batches, images only for reference.

90HBW02PRT

Part No 90HBW02PRT
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description Surface Mount DIP Switches | SWITCH SLIDE DIP SPST 25MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Grayhill Inc.
Packaging Reel
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.190" (4.83mm)
Mounting Style SMD
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Thermoplastic
Length 0.270" (6.86mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1134183-90HBW02PRT
Manufacturer Homepage www.grayhill.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 90HBW02PRT CAD Model

Description

1134183-90HBW02PRT is a high-quality slide switch designed for use in electronic devices, manufactured by Grayhill Inc.

  • Number of Positions: 2
  • Pitch: 0.100" (2.54mm), Full
  • Mounting Type: Surface Mount
  • Termination Style: Gull Wing
  • Seal Type: Tape Seal
  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 0.190" (4.83mm)
  • Length: 0.270" (6.86mm)
  • Material: Thermoplastic
  • Circuit: SPST
  • Actuator Level: Flush, Recessed
  • Washable: Yes
  • Operating Temperature Range: -40°C to 85°C
