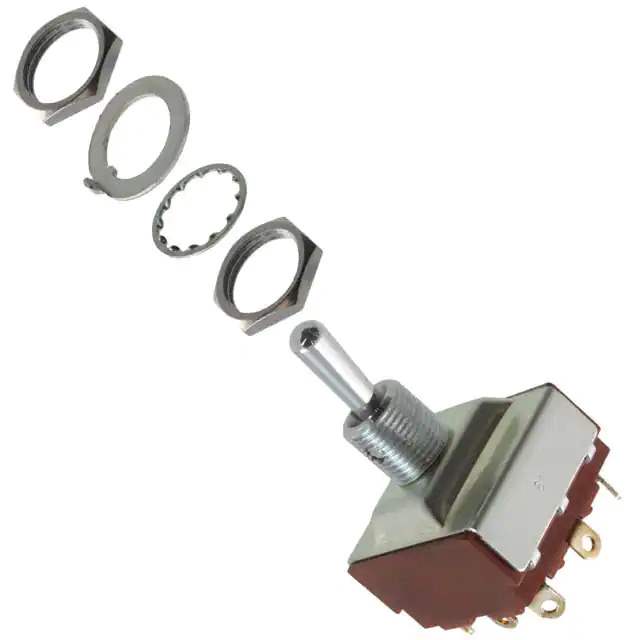

S32 Real Image
Same model may have multiple batches, images only for reference.

S32

Part No S32
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE 3PDT 20A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr NKK Switches
Series S
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit 3PDT
Switch Function On-On
Current Rating (Amps) 20A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Temperature Range - Operating -10°C ~ 70°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 662680-S32
Ultra Librarian 3D Model Ultra Librarian S32 CAD Model

Description

The S series toggle switch is a high-quality component designed for various applications. With a 3PDT circuit configuration, it provides reliable switching for different electrical connections.

  • Product Name: S series toggle switch
  • Circuit Configuration: 3PDT
  • Voltage Rating: 125V AC and 30V DC
  • Standard Package: 1 piece
  • Mounting: Panel-mounted using a circular 12.50mm diameter cutout
  • Actuator: Brass with chrome plating
  • Electrical Life: 25,000 cycles
  • Illumination: Non-illuminated
  • Manufacturer: NKK Switches
  • Operating Temperature: -10°C to 70°C
  • Suitability: Versatile choice for various industrial and electronic applications.
