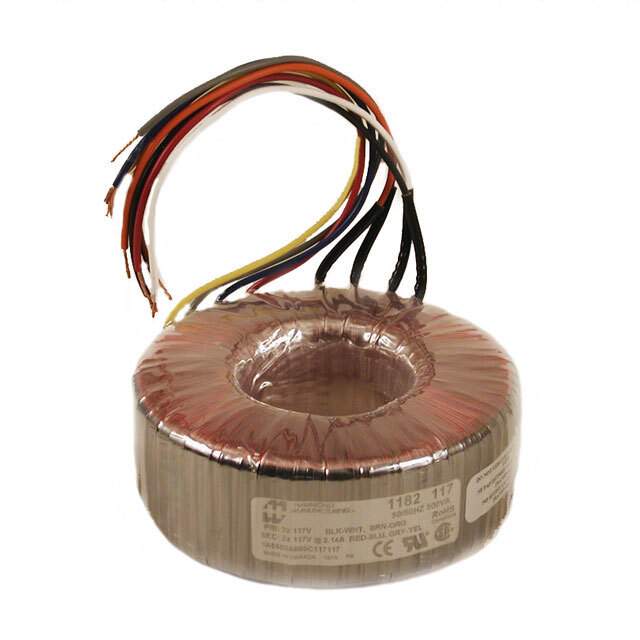

1182M117 Real Image
Same model may have multiple batches, images only for reference.

1182M117

Part No 1182M117
Manufacturer Hammond Manufacturing
Catalog Power Transformers
Description PWR XFMR TORO 300VA CHAS MT  /
Datasheet
1182M117 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Hammond Manufacturing
Series 1182
Package Box
Type Toroidal
Voltage - Primary 117V, 234V
Voltage - Secondary (Full Load) Parallel 117V, Series 234V
Current - Output (Max) Parallel 2.56A, Series 1.28A
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 300VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Dimension 127.00mm Dia
Height - Seated (Max) 47.75mm
Voltage - Isolation 4000Vrms
Weight 6 lbs (2.7 kg)
Base Product Number 1182
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Other Names HM2456,1182M117-ND
Standard Package 1
Win Source Part Number 988938-1182M117
Ultra Librarian 3D Model Ultra Librarian 1182M117 CAD Model

Description

This toroidal type power transformer from the 1182 series has a maximum power of 300VA and a weight of 6 lbs.

  • Maximum Power: 300VA
  • Weight: 6 lbs
  • Voltage Isolation: 4000Vrms
  • Voltage Primary: 117V and 234V
  • Current Output (Max): parallel 2.56A and series 1.28A
  • Voltage Secondary (Full Load): parallel 117V and series 234V
  • Windings: Dual Primary and Secondary
  • Center Tap: No
  • Mounting Type: Chassis Mount
  • Dimension: 127.00mm Dia
  • Package: Box
  • Standard Package: 1
  • MSL Level: Not Applicable
  • REACH: REACH unaffected
  • HTSUS: 8504.31.4065
  • Manufacturer: Hammond Manufacturing
  • Alternative Names: HM2456 and 1182M117-ND
  • Base Product Number: 1182
