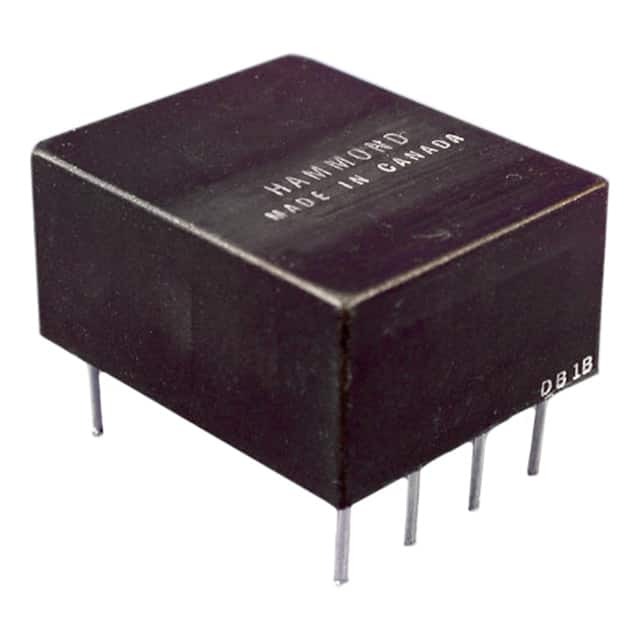

226D
Same model may have multiple batches, images only for reference.

226D

Part No 226D
Manufacturer Hammond Manufacturing
Catalog Power Transformers
Description PWR XFMR SEMI-TORO 1VA TH
Datasheet
226D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Power Transformers
Mfr Hammond Manufacturing
Series 226
Package Bulk
Product Status Obsolete
Type Semi-Toroidal
Voltage - Primary 115V
Voltage - Secondary (Full Load) Parallel 10V, Series 20V
Current - Output (Max) Parallel 100mA, Series 50mA
Primary Winding(s) Single
Secondary Winding(s) Dual
Center Tap No
Power - Max 1VA
Mounting Type Through Hole
Termination Style PC Pin
Size / Dimension 43.94mm L x 34.29mm W
Height - Seated (Max) 20.32mm
Weight 0.22 lb (99.79 g)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 920333-226D
Ultra Librarian 3D Model Ultra Librarian 226D CAD Model

Description

The 920333-226D is a semi-toroidal power transformer from the 226 Series manufactured by Hammond Manufacturing.

  • Termination Style: PC Pin
  • Size: 43.94mm L x 34.29mm W
  • Maximum Power: 1VA
  • Weight: 0.22 lb (99.79 g)
  • Primary Voltage: 115V
  • Secondary Voltage: 10V (parallel) or 20V (series)
  • Status: Obsolete
  • REACH: Unaffected
  • ECCN: EAR99
