Part No 274X
Manufacturer Hammond Manufacturing
Catalog Power Transformers

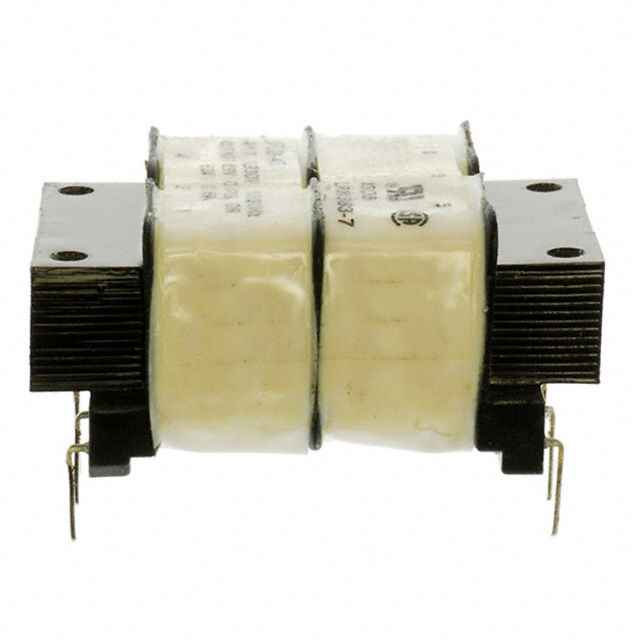

Description PWR XFMR LAMINATED 138VA CHAS MT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Laminated Core
Voltage - Primary 115V
Voltage - Secondary (Full Load) 750V, 6.3V, 5V
Current - Output (Max) 126mA, 5A, 3A
Primary Winding(s) Single
Secondary Winding(s) Triple
Center Tap Yes
Power - Max 138VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Size / Dimension 79.50mm L x 88.90mm W
Height - Seated (Max) 96.77mm
Voltage - Isolation 2000Vrms
Weight 4.9 lbs (2.2 kg)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1546035-274X
Ultra Librarian 3D Model Ultra Librarian 274X CAD Model
