Same model may have multiple batches, images only for reference.

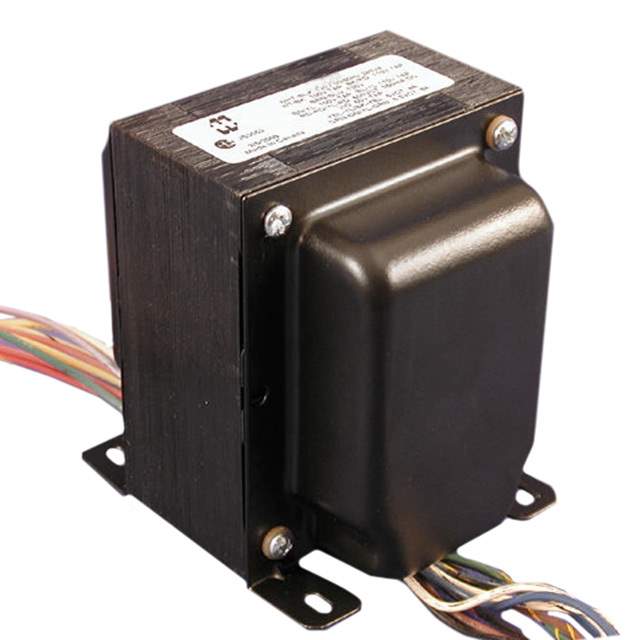

371X Real Image
Same model may have multiple batches, images only for reference.

371X

Part No 371X
Manufacturer Hammond Manufacturing
Catalog Power Transformers
Description PWR XFMR LAMINATED 63VA CHAS MT  /
Datasheet
371X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Hammond Manufacturing
Series 300
Package Bulk
Type Laminated Core
Voltage - Primary 100V, 110V, 120V, 200V, 220V, 240V
Voltage - Secondary (Full Load) 560V, 6.3V, 5V
Current - Output (Max) 69mA, 2A, 2A
Primary Winding(s) Dual, Multiple Taps
Secondary Winding(s) Four
Center Tap Yes
Power - Max 63VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Dimension 76.20mm L x 63.50mm W
Height - Seated (Max) 77.72mm
Voltage - Isolation 2000Vrms
Weight 2.5 lbs (1.1 kg)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names 371X-ND,HM5108
Standard Package 1
Win Source Part Number 1038313-371X
Ultra Librarian 3D Model Ultra Librarian 371X CAD Model

Description

The 300 series laminated core power transformer with wire leads is a high-quality transformer designed for use in electronic devices.

  • Maximum Power Output: 63VA
  • Voltage Isolation: 2000Vrms
  • Primary Voltage: 100V, 110V, 120V, 200V, 220V, or 240V
  • Secondary Voltage @ Full Load: 560V, 6.3V, or 5V
  • Primary Windings: Dual with multiple taps
  • Secondary Windings: Four
  • Center Tap: Yes
  • Mounting: Chassis mounting
  • Height: 77.72mm
  • Weight: 2.5 lbs (1.1 kg)
