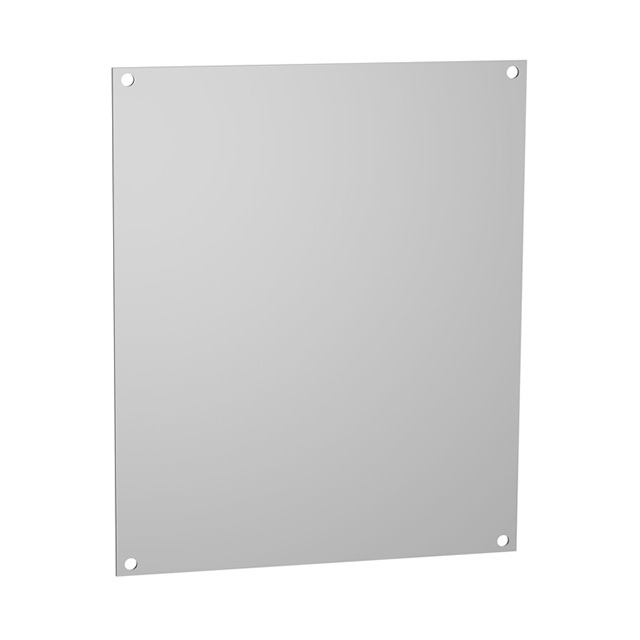

AP2420 Hammond Manufacturing
Same model may have multiple batches, images only for reference.

AP2420

Part No AP2420
Manufacturer Hammond Manufacturing
Catalog Rack Components
Description STEEL INNER PANEL / Metal, Steel Panel, Inner 21.000" L x 18.500" W (533.40mm x 469.90mm) White
Datasheet
AP2420 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Boxes, Enclosures, Racks - Rack Components
Mfr Hammond Manufacturing
Series AP
Package Bulk
Product Status Active
Type Panel, Inner
Size / Dimension 21.000" L x 18.500" W (533.40mm x 469.90mm)
Color White
Material Metal, Steel
For Use With/Related Products N1A Series
Ventilation Non-Vented
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 7326.90.8688
Win Source Part Number 807002-AP2420
Ultra Librarian 3D Model Ultra Librarian AP2420 CAD Model

Description

The 807002-AP2420 is a panel, inner type enclosure from Hammond Manufacturing.

  • Series: AP
  • Designed for Use With: N1A series
  • Color: White
  • Package: Bulk
  • Size: 21.000" L x 18.500" W (533.40mm x 469.90mm)
  • Material: Metal, Steel
  • Ventilation: Non-Vented
