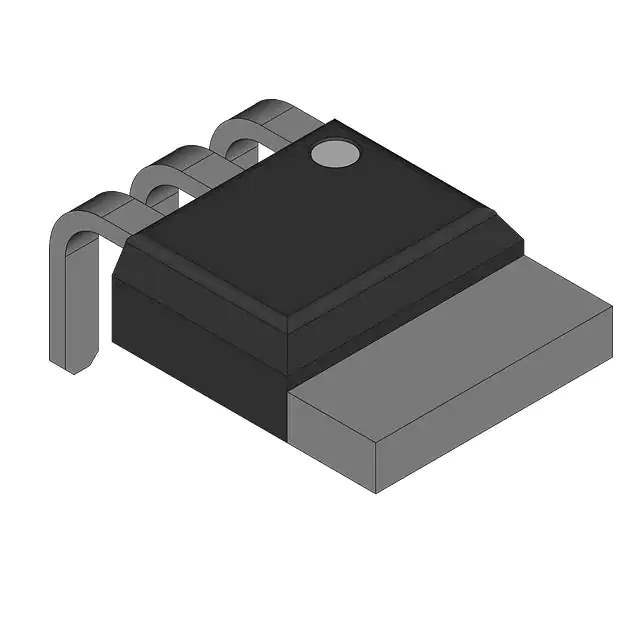

RF1S23N06LE Real Image
Same model may have multiple batches, images only for reference.

RF1S23N06LE

Part No RF1S23N06LE
Manufacturer Harris Corporation
Catalog Transistors - FETs, MOSFETs - RF
Description 23A, 60V, 0.065OHM, N-CHANNEL,
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Harris Corporation
Package Bulk
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) @ 25°C 23A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 5V
Rds On (Max) @ Id, Vgs 65mOhm @ 23A, 5V
Vgs(th) (Max) @ Id 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 48 nC @ 10 V
Vgs (Max) ±10V
Input Capacitance (Ciss) (Max) @ Vds 850 pF @ 25 V
Power Dissipation (Max) 75W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package I2PAK (TO-262)
Package / Case TO-262-3 Long Leads, I²Pak, TO-262AA
Standard Package 423 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 0000.00.0000
Win Source Part Number 293206-RF1S23N06LE
Ultra Librarian 3D Model Ultra Librarian RF1S23N06LE CAD Model

Description

The RF1S23N06LE is an N-Channel MOSFET transistor designed for medium power applications.

  • Drain-to-Source Voltage: 60V
  • Continuous Drain Current: 23A @ 25°C
  • On-Resistance: 65mΩ @ 23A and 5V gate-source voltage
  • Gate Threshold Voltage: 2V @ 250μA
  • Power Dissipation: 75W @ a case temperature of 25°C
  • Mounting Type: Through-hole mountable
  • Package: TO-262-3 Long Leads, I²Pak
  • Standard Package: 423 pieces
  • Manufacturer: Harris Corporation
  • Status: Active product
  • Capability: Providing reliable switching capabilities for your electronic devices.
