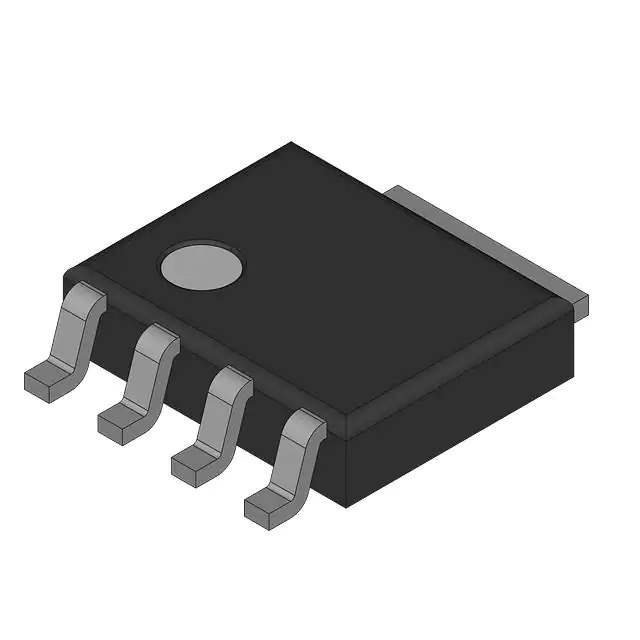

Same model may have multiple batches, images only for reference.

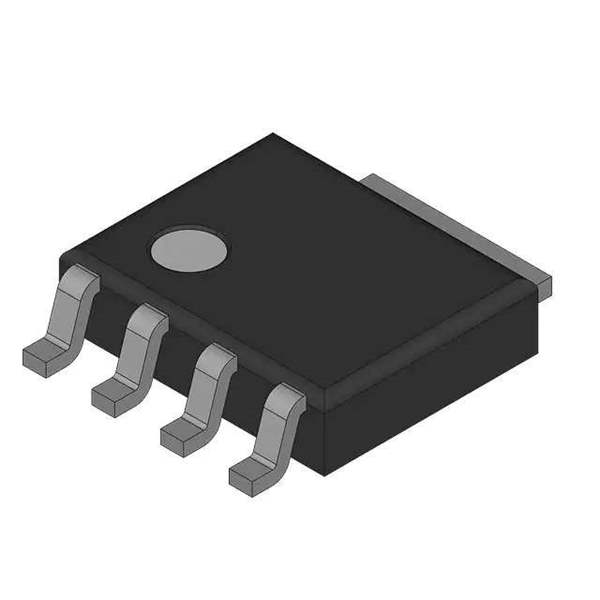

RJK0328DPB-00#J0 Real Image
Same model may have multiple batches, images only for reference.

RJK0328DPB-00#J0

Part No RJK0328DPB-00#J0
Manufacturer Renesas Electronics America
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 60A LFPAK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Renesas Electronics America
Package Bulk
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 60A (Ta)
Rds On (Max) @ Id, Vgs 2.1mOhm @ 30A, 10V
Gate Charge (Qg) (Max) @ Vgs 42 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds 6380 pF @ 10 V
Mounting Type Surface Mount
Supplier Device Package LFPAK
Package / Case SC-100, SOT-669
Standard Package 2,500 pcs
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 295172-RJK0328DPB-00#J0
Ultra Librarian 3D Model Ultra Librarian RJK0328DPB-00#J0 CAD Model

Description

The RJK0328DPB-00#J0 is a single N-channel MOSFET transistor from Renesas Electronics America.

  • Applications: Discrete semiconductor
  • Category: FETs, MOSFETs - Single FETs, MOSFETs
  • Package: Bulk
  • Standard Package: 2,500 pieces
  • Technology: Metal Oxide
  • Vdss: 30V
  • Id (at 25°C): 60A
  • Rds On (Max) @ Id, Vgs: 2.1mOhm @ 30A, 10V
  • Mounting Type: Surface Mount
  • Package: SC-100, SOT-669
  • Qg (Max) @ Vgs: 42 nC @ 4.5V
  • Ciss (Max) @ Vds: 6380 pF @ 10V
  • MSL Level: 1
  • REACH Status: Unaffected
  • HTSUS Code: 8541.29.0095
  • Status: Obsolete
