Same model may have multiple batches, images only for reference.

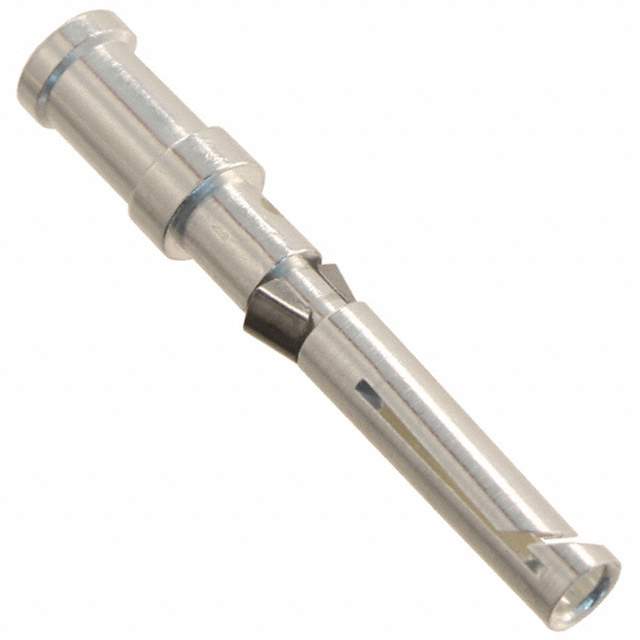

09150006201 Real Image
Same model may have multiple batches, images only for reference.

09150006201

Part No 09150006201
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description CONTACT H.D. CRIMP SOCKET 16AWG / Contact Crimp Socket 16 AWG Silver
Datasheet
09150006201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Contacts
Mfr HARTING
Series Han® D
Package Bulk
Product Status Active
Type Machined
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 16 AWG
Contact Finish Silver
Contact Finish Thickness 118.1µin (3.00µm)
Base Product Number 09150006
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 849300-09150006201
Ultra Librarian 3D Model Ultra Librarian 09150006201 CAD Model

Description

The 849300-09150006201 is a heavy-duty connector contact from HARTING.

  • Series: Han® D
  • Type: Machined
  • Contact Finish: Silver
  • Contact Finish Thickness: 118.1µin (3.00µm)
  • Termination: Crimp
  • Wire Gauge: 16 AWG
  • Contact Type: Socket Pin
  • Standard Package: 100 pieces
  • Current Rating: 10A
  • Voltage Rating: Unspecified
  • REACH Compliance: Unaffected
  • ECCN: EAR99
