09620030301

Part No 09620030301
Manufacturer HARTING
Catalog Heavy Duty Connectors

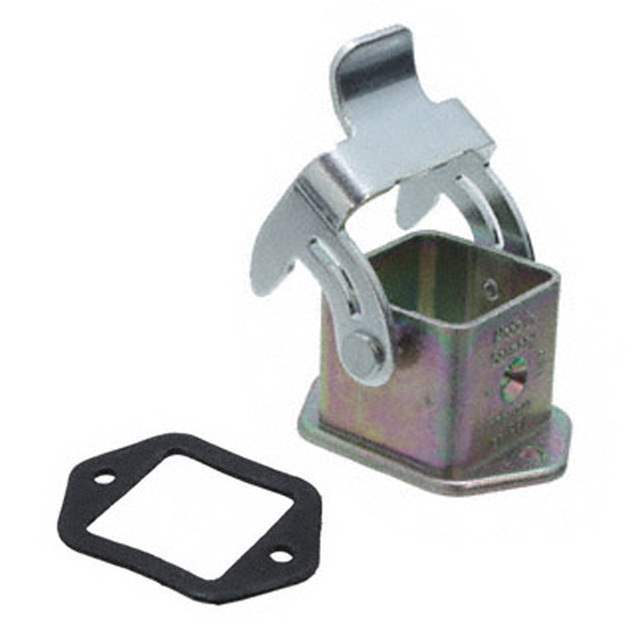

Description CONN BASE BOTTOM ENTRY SZ3A
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206670-09620030301
Manufacturer HARTING
Category Connectors, Interconnects -Heavy Duty Connectors -Heavy Duty Connector Housings, Hoods, Bases
Series Han® EMC
Package Bulk
Product Status Active
Connector Type Base - Panel Mount
Style Bottom Entry
Size / Dimension 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm)
Ingress Protection IP44
Housing Material Zinc, Die Cast
Ultra Librarian 3D Model Ultra Librarian 09620030301 CAD Model

Description

Base - Panel Mount Connector Bottom Entry 3A IP44
