Same model may have multiple batches, images only for reference.

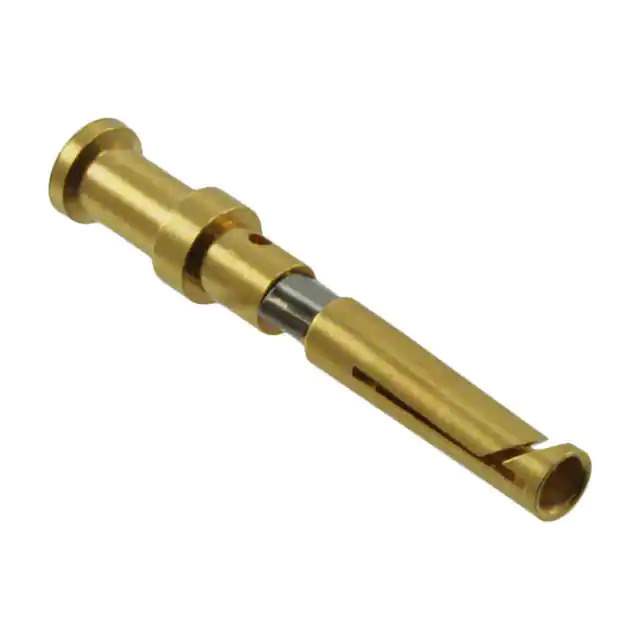

09150006224 Real Image
Same model may have multiple batches, images only for reference.

09150006224

Part No 09150006224
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description CONTACT H.D. CRIMP SKT 22-26AWG
Datasheet
09150006224 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Contacts
Mfr HARTING
Series Han® D
Package Bulk
Product Status Active
Type Machined
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 22-26 AWG
Contact Finish Gold
Contact Finish Thickness 78.7µin (2.00µm)
Base Product Number 09150006
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 908700-09150006224
Ultra Librarian 3D Model Ultra Librarian 09150006224 CAD Model

Description

The 908700-09150006224 is a Han® D Heavy Duty Connector Contact from HARTING.

  • Product Type: Connector Contact
  • Series: Han® D Heavy Duty
  • Contact Type: Socket
  • Contact Finish: Gold
  • Contact Finish Thickness: 78.7µin (2.00µm)
  • Package Quantity: 100 pieces
  • Wire Gauge: 22-26 AWG
  • Termination Type: Crimp
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8536.90.4000
  • Product Status: Active
  • Manufacturer: HARTING
