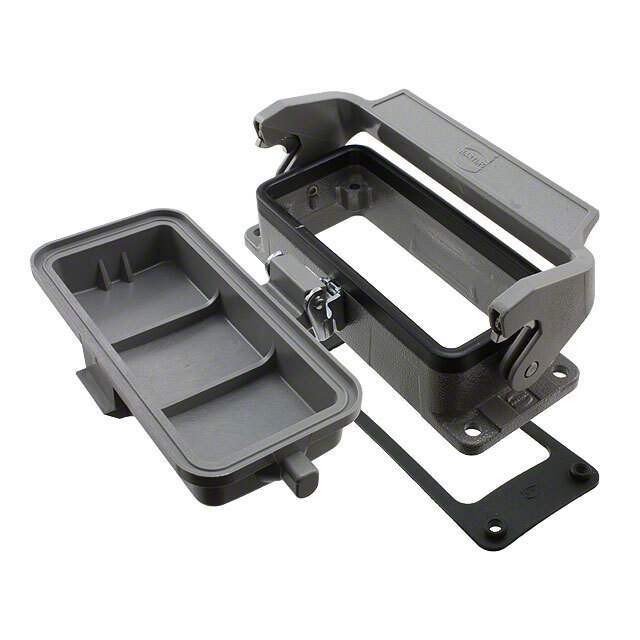

09300160306 HARTING
Same model may have multiple batches, images only for reference.

09300160306

Part No 09300160306
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description CONN BASE BOTTOM ENTRY SZ16B
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206663-09300160306
Manufacturer HARTING
Category Connectors, Interconnects -Heavy Duty Connectors -Heavy Duty Connector Housings, Hoods, Bases
Series Han® B
Package Bulk
Product Status Active
Connector Type Base - Panel Mount
Style Bottom Entry
Size / Dimension 4.449" L x 1.709" W x 1.138" H (113.00mm x 43.40mm x 28.90mm)
Ingress Protection IP65 - Dust Tight, Water Resistant
Operating Temperature -40°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian 09300160306 CAD Model

Description

Base - Panel Mount Connector Bottom Entry 16B IP65 - Dust Tight, Water Resistant
