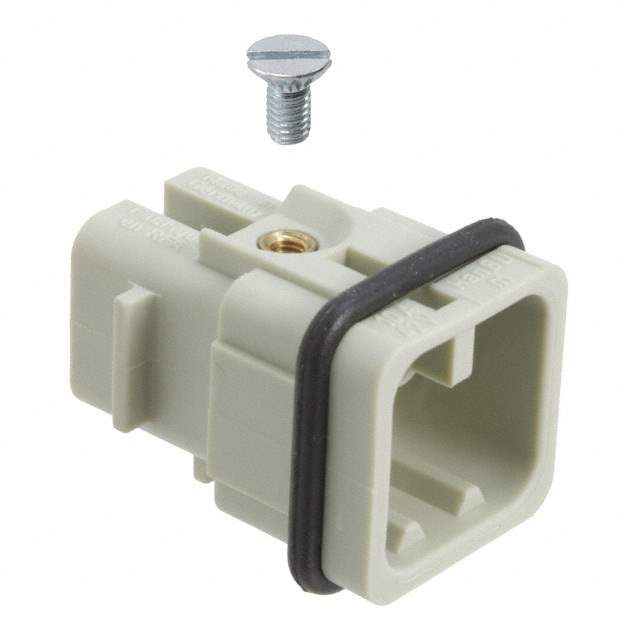

09360083001 Real Image1 09360083001 Real Image2
Same model may have multiple batches, images only for reference.
09360083001 Real Image1 09360083001 Real Image2
09360083001 Real Image1 09360083001 Real Image2
Same model may have multiple batches, images only for reference.

09360083001

Part No 09360083001
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description INSERT MALE 8POS CRIMP / Male Insert without Contacts Gray 8 Position Crimp
Datasheet
09360083001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Inserts, Modules
Mfr HARTING
Series Han® 8D
Package Bulk
Product Status Active
Connector Type Insert without Contacts
Gender Male
Number of Positions 8
Size 3A
Termination Style Crimp
Voltage Rating 50V
Current Rating (Amps) 10A
Contact Type Han® D
Temperature Range - Operating -40°C ~ 125°C
Color Gray
Housing Material Polyamide (PA), Nylon
Material Flammability Rating UL94 HB
Base Product Number 09360083
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 904789-09360083001
Ultra Librarian 3D Model Ultra Librarian 09360083001 CAD Model

Description

The 904789-09360083001 is a male heavy-duty connector insert from HARTING.

  • Series: Han® 8D
  • Gender: Male
  • Positions: 8
  • Termination Style: Crimp
  • Color: Gray
  • Connector Type: Insert (Without Contacts)
  • Voltage Rating: 50V
  • Housing Material: Polyamide (PA), Nylon
  • Flammability Rating: UL94 HB
  • Packaging: Bulk
  • Package Quantity: 10
  • Temperature Range: -40°C to 125°C
  • Current Rating: 10A
