09452819000 HARTING – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

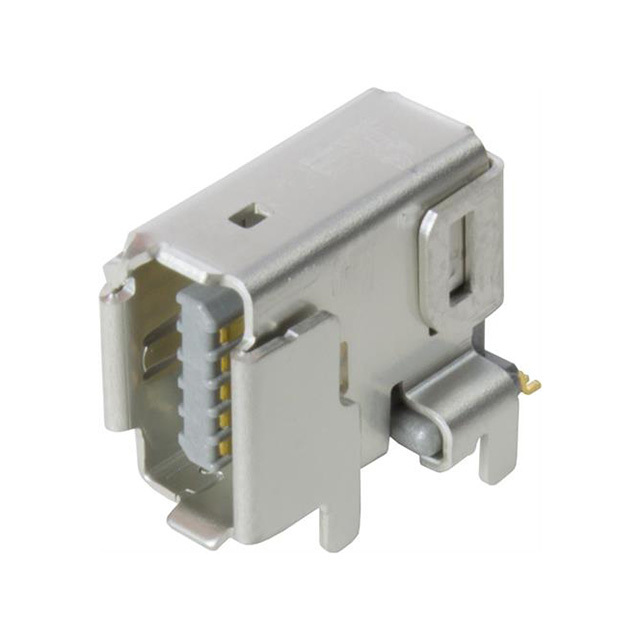

09452819000

Part No 09452819000
Manufacturer HARTING
Catalog Connectors, Interconnects
Description IX INDUSTRIAL 10B-1 JACK AV (T&R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsPluggable ConnectorsPluggable Connector Assemblies
Manufacturer HARTING
Series ix Industrial?
Part Status Active
Connector Style Plug
Connector Type Multi-Purpose
Number of Positions 10
Mounting Type Surface Mount, Right Angle; Through Hole
Termination Solder
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 7.87μin (0.200μm)
Packaging Tape & Reel (TR)Cut Tape (CT)
Ultra Librarian 3D Model Ultra Librarian 09452819000 CAD Model
