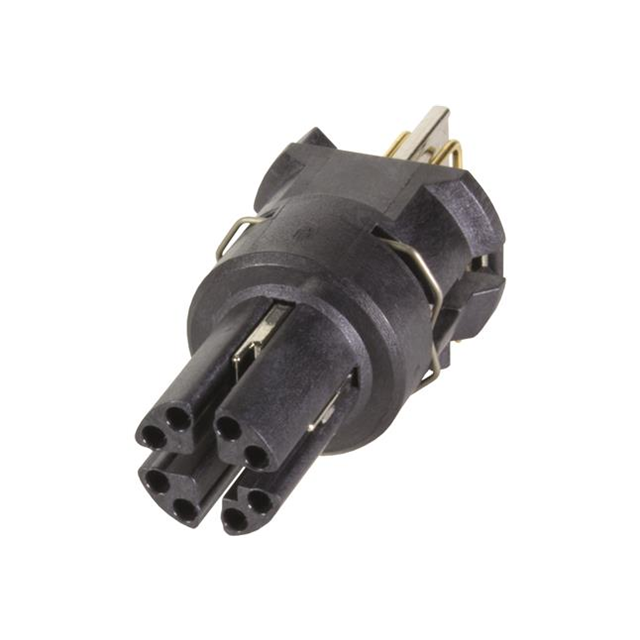

21033814806 Real Image
Same model may have multiple batches, images only for reference.

21033814806

Part No 21033814806
Manufacturer HARTING
Catalog Circular Connectors - Assemblies
Description CONN FMALE INSERT 8P GOLD SOLDER / 8 Position Circular Connector Insert, Female Sockets Solder
Datasheet
21033814806 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr HARTING
Series M12
Package Tray
Product Status Active
Connector Type Insert, Female Sockets
Number of Positions 8
Shell Size - Insert M12-8
Mounting Type Through Hole, Right Angle
Termination Solder
Orientation X
Contact Finish - Mating Gold
Features Board Guide, Insert Only, Requires Shell
Shielding Shielded
Current Rating (Amps) 0.5A
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Contact Material Copper Alloy
Insert Material Liquid Crystal Polymer (LCP)
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 905905-21033814806
Ultra Librarian 3D Model Ultra Librarian 21033814806 CAD Model

Description

The 905905-21033814806 is a circular connector assembly from the M12 series. It has 8 positions and is designed for through-hole mounting.

  • Series: M12
  • Positions: 8
  • Mounting: Through-Hole
  • Insert Material: Liquid Crystal Polymer (LCP)
  • Temperature Range: -40°C to 85°C
  • Connector Type: Receptacle
  • Connector Gender: Female Sockets
  • Shielded: Yes
  • Manufacturer: HARTING
