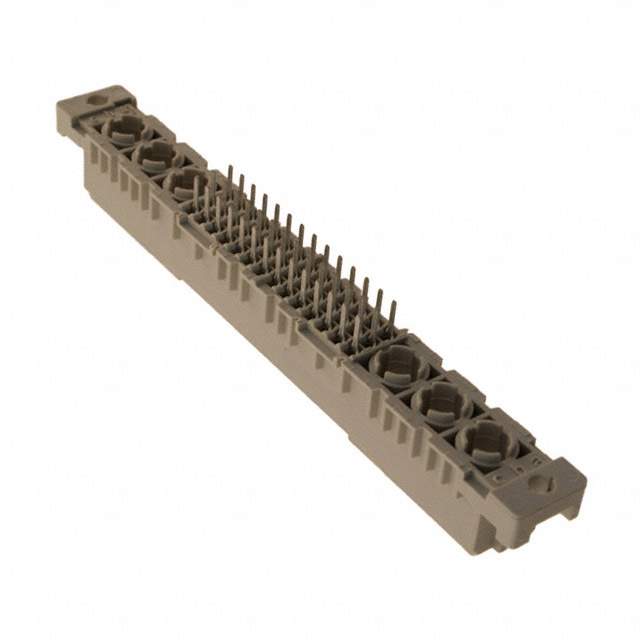

09032426805 Real Image
Same model may have multiple batches, images only for reference.

09032426805

Part No 09032426805
Manufacturer HARTING
Catalog Backplane Connectors
Description CONN DIN RCPT 48POS PCB / 48 (42 + 6 Coax, Fiber Optic or Power) Position Din Connector Receptacle, Female Sockets Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>DIN 41612
Manufacturer HARTING
Packaging Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 48 (42 + 6 Coax, Fiber Optic or Power)
Number of Positions Loaded 42
Pitch 0.100" (2.54mm)
Number of Rows 3
Style M
Level, Class 2
Mounting Through Hole
Termination Solder
Material Flammability Rating UL94 V-0
Material - Insulation Thermoplastic, Glass Filled
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 9032426805,1195-1165
Standard Package 20
Win Source Part Number 1333120-09032426805
Ultra Librarian 3D Model Ultra Librarian 09032426805 CAD Model

Description

The 1333120-09032426805 is a DIN 41612 backplane connector manufactured by HARTING.

  • Positions: 48 (42 + 6 coax, fiber optic or power)
  • Mounting Style: Through-Hole
  • Insulation Material: Thermoplastic and Glass Filled
  • Material Flammability Rating: UL94 V-0
  • REACH: Unaffected
  • ROHS3 Compliant: Yes
