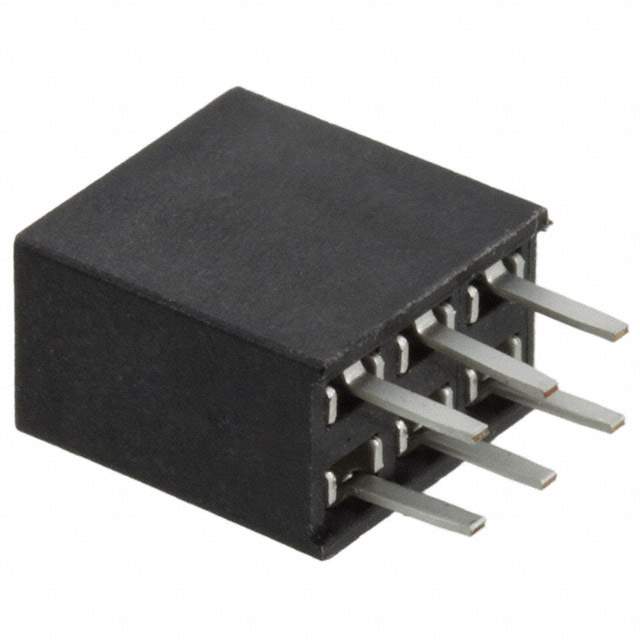

M20-7830342

Name: M20-7830342
Brand: Harwin Inc.
SKU: 1349233
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	M20-7830342
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 6POS 0.1 GOLD PCB / 6 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet	M20-7830342 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Harwin Inc.
Series	M20
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	11.04mm, 12.63mm
Current Rating (Amps)	3A
Voltage Rating	1000V
Applications	General Purpose, Industrial, Telecommunications
Insulation Material	Polyamide (PA6T) , Nylon 6T
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	M20-783
Standard Package	71
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349233-M20-7830342
Ultra Librarian 3D Model	Ultra Librarian M20-7830342 CAD Model

Alternative Products

Description

The M20 series connector is a rectangular connector that features a receptacle type connector with female socket contacts.

Connector Type: Receptacle
Number of Positions: 6
Number of Rows: 2
Connection Style: Board to Board or Cable
Contact Material: Phosphor Bronze
Voltage Rating: 1000V
Mounting Type: Through Hole
Pitch - Mating: 0.100” (2.54mm)
Contact Finish - Mating: Gold, Flash
Contact Finish - Post: Tin
Insulation Material: Polyamide (PA6T), Nylon 6T
Flammability Rating: UL94 V-0
Application: General Purpose, Industrial, Telecommunications
Operating Temperature: -40°C to 105°C
Current Rating: 3A
Packaging: Tube
Standard Package: 71
Ingress Protection: Not Applicable
