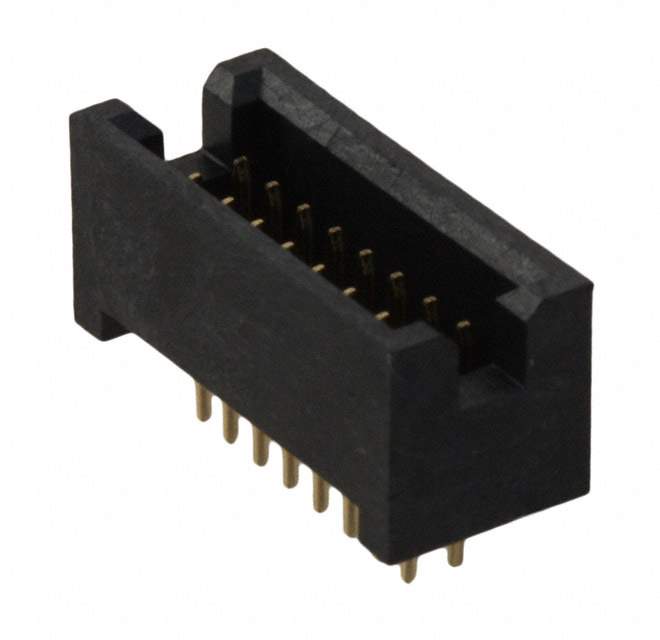

M50-4700845

Name: M50-4700845
Brand: Harwin Inc.
SKU: 1340353
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M50-4700845
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 16POS 1.27MM / Connector Header Through Hole 16 position 0.050" (1.27mm)
Datasheet	M50-4700845 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Archer M50
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Post	0.091" (2.30mm)
Insulation Height	0.224" (5.69mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Mated Stacking Heights	6mm
Base Product Number	M50-470
Standard Package	45
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1340353-M50-4700845
Ultra Librarian 3D Model	Ultra Librarian M50-4700845 CAD Model

Alternative Products

Description

The Harwin Inc. Archer M50 series male pin header is a board-to-board connector that is designed for use in various applications. Bold the product name (e.g., BAV99S,135 → Archer M50 series) and manufacturer (e.g., Nexperia USA Inc. → Harwin Inc.).

Connector Type: Board-to-Board
Positions: 16
Pitch: 0.050" (1.27mm)
Loading: All Contacts
Design: Shrouded, 4-Wall
Insulation Material: Liquid Crystal Polymer (LCP), UL94 V-0
Contact Material: Copper Alloy
Contact Finish (Mating/Post): Gold
Current Rating: 1A per Contact
Mounting Type: Through-Hole
Temperature Range: -40°C to 105°C
Packaging: Tube
