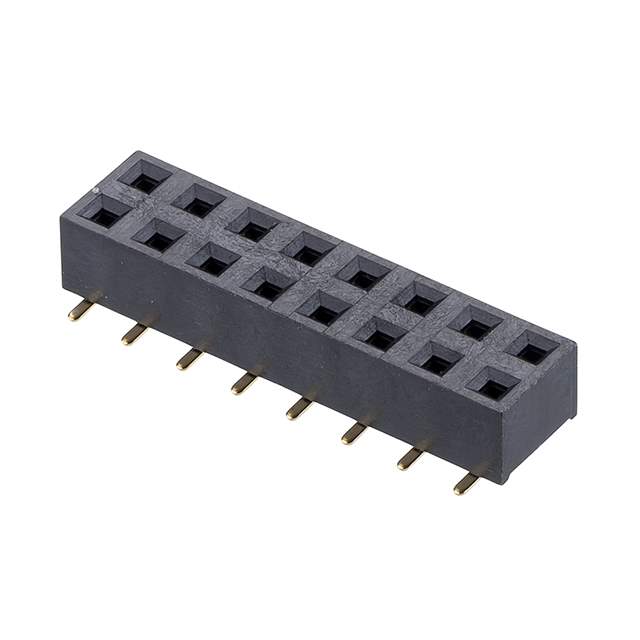

M20-7810845R Real Image
Same model may have multiple batches, images only for reference.

M20-7810845R

Part No M20-7810845R
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN RCPT 16POS 0.1 GOLD SMD
Datasheet
M20-7810845R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 11 Weeks
Features 16 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
Manufacturer Harwin Inc.
Series M20
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount
Family Name M20-781
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Quantity per package 600
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 880504-M20-7810845R
Ultra Librarian 3D Model Ultra Librarian M20-7810845R CAD Model

Description

The M20-7810845R is a 16 position receptacle, bottom or top entry connector from Harwin Inc.

  • Series: M20
  • Supply and Demand Status: Limited
  • Popularity: Medium
  • Mounting Type: Surface Mount
  • Plating: Gold
  • Operating Temperature: -40°C ~ 105°C
  • Package: Reel - TR
  • Mounting: Surface Mount
  • Family Name: M20-781
  • Category: Connectors
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 11 Weeks
  • REACH Status: REACH unaffected
  • HTSUS: 8536.69.4040
