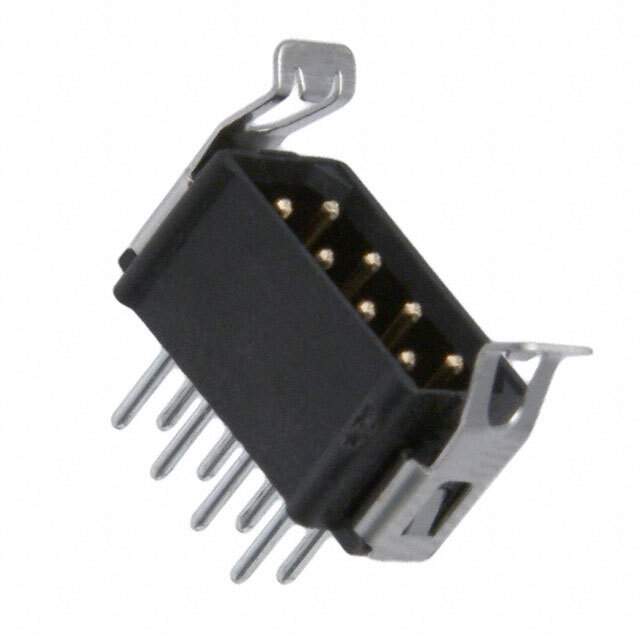

M80-8530842 Real Image
Same model may have multiple batches, images only for reference.

M80-8530842

Part No M80-8530842
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description DATAMATE DIL VERTICAL PC TAIL PLUG ASSEMBLY - LATCHED (RoHS) | CONN HEADER VERT 8POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Harwin Inc.
Packaging Tube
Connector Type Plug
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Latch Lock
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.219" (5.56mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 29.5μin (0.75μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA46), Nylon 4/6
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2.2A
Voltage Rating 800V
Mated Stacking Heights 7.23mm, 7.85mm, 10.2mm, 13.51mm
Contact Finish Thickness - Post 118.1μin (3.00μm)
Manufacturer Pack Quantity 21
MSL Level 1 (Unlimited)
Win Source Part Number 1211178-M80-8530842
Manufacturer Homepage www.harwin.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian M80-8530842 CAD Model

Description

The Harwin Inc. 1211178-M80-8530842 is a through-hole plug connector with a latch lock fastening type.

  • Positions Loaded: 8
  • Contact Type: Male Pin
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 800V
  • Shrouded: 4 Walls
  • Row Spacing: 0.079 inches
  • Contact Finish for Mating: Gold (29.5μin)
  • Contact Finish for Post: Tin (118.1μin)
  • Insulation Material: Polyamide (PA46), Nylon 4/6
  • Flammability Rating: UL94 V-0
  • Connection Type: Board to Board, Cable
  • Pitch Mating: 0.079 inches
  • Mated Stacking Heights: 7.23mm, 7.85mm, 10.2mm, 13.51mm
  • Contact Length for Post: 0.118 inches
  • Insulation Height: 0.219 inches
  • Contact Shape: Circular
  • Operating Temperature: -55°C ~ 125°C
  • Application: Industrial
