Same model may have multiple batches, images only for reference.

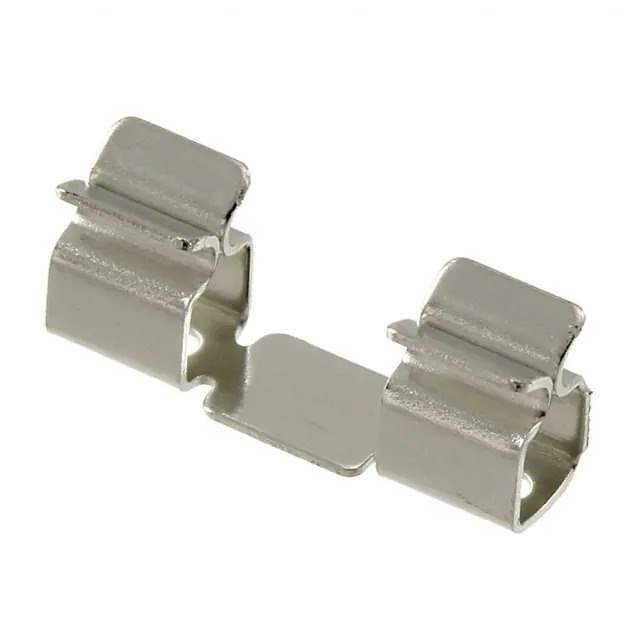

S2711-46R Real Image
Same model may have multiple batches, images only for reference.

S2711-46R

Part No S2711-46R
Manufacturer Harwin Inc.
Catalog RFI and EMI - Contacts, Fingerstock and Gaskets
Description SMT RFI CLIP 1900/TR (T&R)
Datasheet
S2711-46R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RFI and EMI - Contacts, Fingerstock and Gaskets
Mfr Harwin Inc.
Series EZ BoardWare
Package Tape & Reel
Product Status Active
Type Shield Clip
Width 0.090" (2.28mm)
Length 0.346" (8.79mm)
Height 0.140" (3.55mm)
Material Copper Alloy
Plating Tin
Plating - Thickness 118.11µin (3.00µm)
Attachment Method Solder
Temperature Range - Operating -40°C ~ 125°C
Base Product Number S2711
Standard Package 1,900 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 892938-S2711-46R
Ultra Librarian 3D Model Ultra Librarian S2711-46R CAD Model

Description

The EZ BoardWare Shield Clip is a versatile electronic component designed for RF and wireless applications.

  • Material: Copper Alloy
  • Plating: Tin plating of 118.11µin thickness
  • Length: 0.346" (8.79mm)
  • Height: 0.140" (3.55mm)
  • Width: 0.090" (2.28mm)
  • Attachment Method: Solder
  • Operating Temperature Range: -40°C to 125°C
  • Package Quantity: 1,900 pieces
  • Manufacturer: Harwin Inc.
  • Series: EZ BoardWare
  • Application: RFI and EMI applications
  • Protection: Reliable protection for electronic devices
