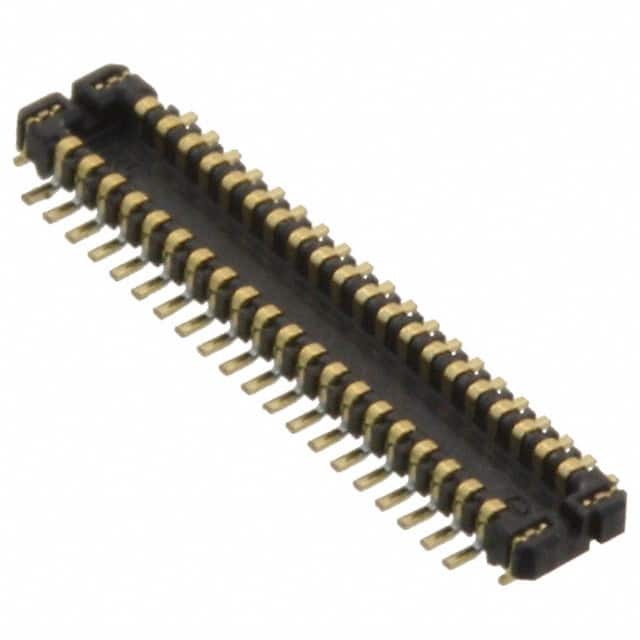

Same model may have multiple batches, images only for reference.
BM10B(0.6)-40DP-0.4V(51)
Same model may have multiple batches, images only for reference.

BM10B(0.6)-40DP-0.4V(51)

Part No BM10B(0.6)-40DP-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 40POS SMD GOLD / 40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
BM10B(0.6)-40DP-0.4V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series BM10
Package Tape & Reel
Product Status Obsolete
Connector Type Header, Outer Shroud Contacts
Number of Positions 40
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 0.6mm
Height Above Board 0.020" (0.50mm)
Standard Package 8,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 864369-BM10B(0.6)-40DP-0.4V(51)
Ultra Librarian 3D Model Ultra Librarian BM10B(0.6)-40DP-0.4V(51) CAD Model

Description

The 864369-BM10B(0.6)-40DP-0.4V(51) is a rectangular connector array from Hirose Electric Co Ltd.

  • Series: BM10
  • Positions: 40
  • Pitch: 0.016" (0.40mm)
  • Feature: Solder Retention
  • Type: Header with Outer Shroud Contacts
  • Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 2.00μin (0.051μm)
  • Package: Tape & Reel
  • Standard Package: 8,000 pcs
  • Mounting Type: Surface Mount
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
