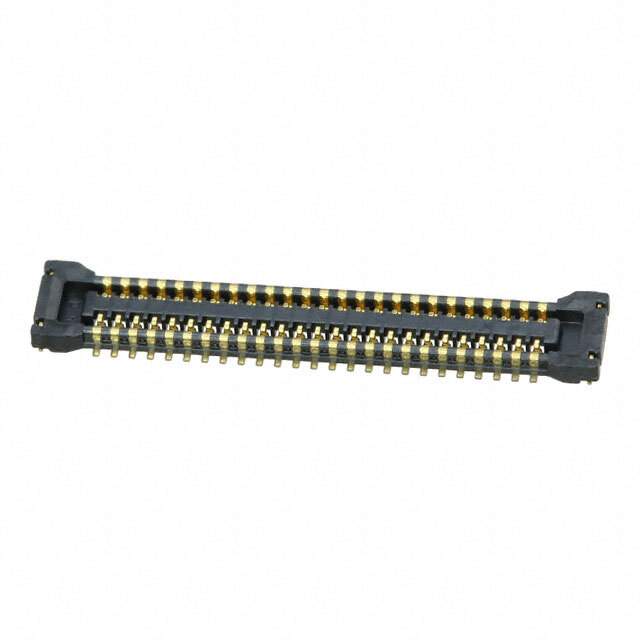

BM20B(0.8)-50DP-0.4V(51) Real Image
Same model may have multiple batches, images only for reference.

BM20B(0.8)-50DP-0.4V(51)

Part No BM20B(0.8)-50DP-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 50POS 0.4MM SMD
Datasheet
BM20B(0.8)-50DP-0.4V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 50
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2μin (0.05μm)
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1023704-BM20B(0.8)-50DP-0.4V(51)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 8k pcs
Ultra Librarian 3D Model Ultra Librarian BM20B(0.8)-50DP-0.4V(51) CAD Model

Description

The Hirose Electric Co Ltd BM20B(0.8)-50DP-0.4V(51) is a 50-position connector header that comes with outer shroud contacts and has a pitch of 0.016 inches (0.40mm).

  • Series: BM20B
  • Features: Solder retention
  • Supply and Demand: Balanced
  • Package: Reel of 8000 pieces
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
