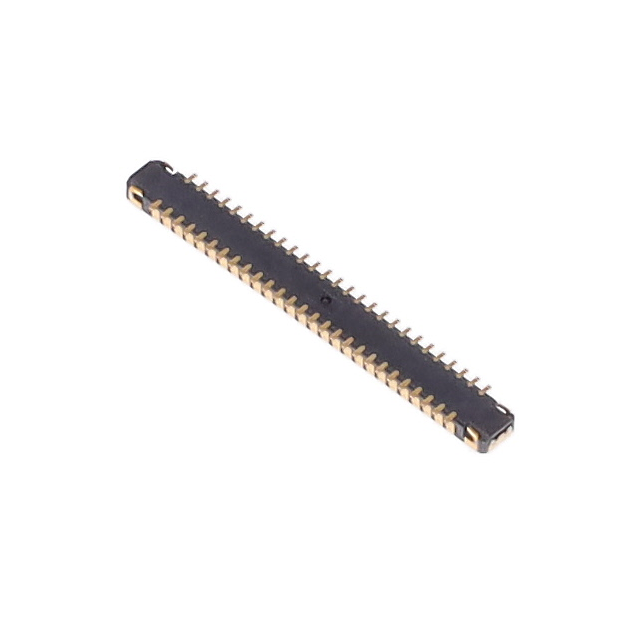

Same model may have multiple batches, images only for reference.

BM23PF0.8-54DP-0.35V(895)

Name: BM23PF0.8-54DP-0.35V(895)
Brand: Hirose Electric Co Ltd
SKU: 979565
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	BM23PF0.8-54DP-0.35V(895)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HDR 54POS SMD GOLD / 54 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet	BM23PF0.8-54DP-0.35V(895) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	BM23
Package	Tape & Reel
Connector Type	Header, Outer Shroud Contacts
Number of Positions	54
Pitch	0.014" (0.35mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	1.97µin (0.050µm)
Mated Stacking Heights	0.8mm
Height Above Board	0.025" (0.63mm)
Base Product Number	BM23PF0.8
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	H125650TR,BM23PF0.8-54DP-0.35V(895)-ND,H125650CT,480-0303-0-95,H125650DKR
Standard Package	1,000
Win Source Part Number	979565-BM23PF0.8-54DP-0.35V(895)
Ultra Librarian 3D Model	Ultra Librarian BM23PF0.8-54DP-0.35V(895) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd BM23PF0.8-54DP-0.35V(895) is a rectangular connector array with edge type mezzanine (board to board) and 54 positions.

Positions: 54
Pitch: 0.014" (0.35mm)
Features: Solder Retention
Connector Type: Header with Outer Shroud Contacts
Rows: 2
Contact Finish: Gold
Contact Finish Thickness: 1.97µin (0.050µm)
Package: Tape and Reel
Mated Stacking Height: 0.8mm
Height Above Board: 0.025" (0.63mm)
Mounting Type: SMD (SMT)
Category: Connectors
ECCN: EAR99
HTSUS Code: 8536.69.4040
