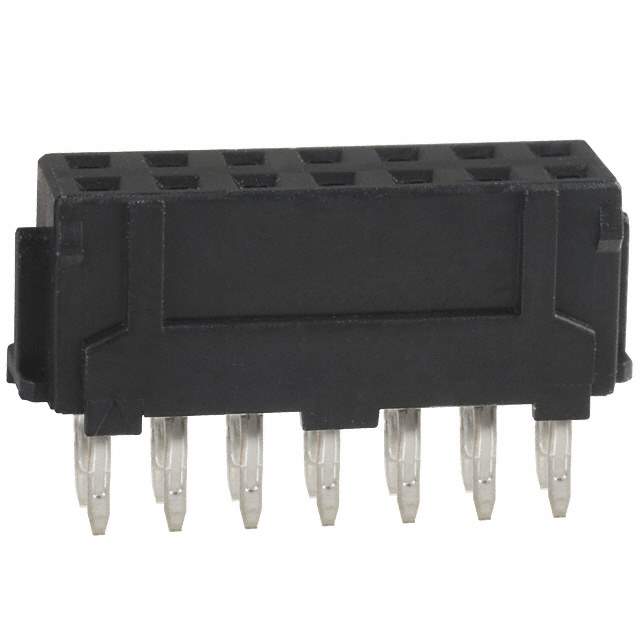

Same model may have multiple batches, images only for reference.

DF11-14DS-2DSA(05)

Name: DF11-14DS-2DSA(05)
Brand: Hirose Electric Co Ltd
SKU: 1348658
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF11-14DS-2DSA(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 14POS 0.079 TIN PCB / 14 Position Receptacle Connector 0.079" (2.00mm) Through Hole Tin
Datasheet	DF11-14DS-2DSA(05) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Hirose Electric Co Ltd
Series	DF11
Package	Tray
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	14
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Friction Lock
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	78.7µin (2.00µm)
Insulation Color	Black
Insulation Height	0.244" (6.20mm)
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	7.8mm, 8.45mm
Current Rating (Amps)	2A
Voltage Rating	250V
Applications	General Purpose
Insulation Material	Polyamide (PA) , Nylon
Contact Shape	Square
Contact Material	Brass
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	DF11
Standard Package	100
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1348658-DF11-14DS-2DSA(05)
Ultra Librarian 3D Model	Ultra Librarian DF11-14DS-2DSA(05) CAD Model

Alternative Products

Description

The DF11 series connector assembly is a rectangular connector with 14 positions and a pitch of 0.079" (2.00mm).

Number of Positions: 14
Pitch: 0.079" (2.00mm)
Connector Type: Receptacle
Contact Type: Female Socket
Positions Loaded: All
Termination: Press-Fit, Solder
Fastening Type: Friction Lock
Contact Material: Brass
Contact Finish: Tin
Contact Finish Thickness: 78.7µin (2.00µm)
Voltage Rating: 250V
Material Flammability Rating: UL94 V-0
Standard Package: 100
Application: General Purpose
Mounting Type: Through Hole
Operating Temperature: -30°C to 85°C
Current Rating: 2A
ECCN: EAR99
