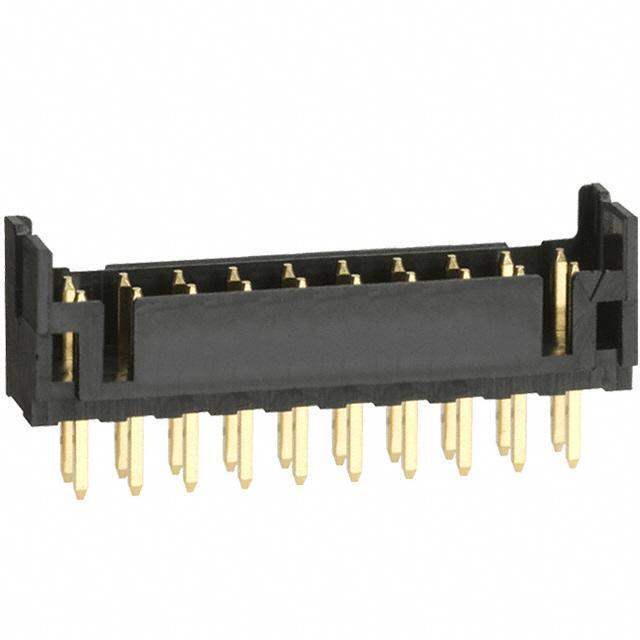

DF11-20DP-2DSA(01)
Same model may have multiple batches, images only for reference.

DF11-20DP-2DSA(01)

Part No DF11-20DP-2DSA(01)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197273-DF11-20DP-2DSA(01)
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects- Rectangular Connectors Headers, Male Pins
Series DF11
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 20
Number of Rows 2
Ultra Librarian 3D Model Ultra Librarian DF11-20DP-2DSA(01) CAD Model

Description

The DF11 is a series of rectangular connectors headers with male pins manufactured by Hirose Electric Co Ltd. This particular product has 20 positions and is designed for surface mounting. The connector type is a header, and it has a contact type of male pin. The DF11 is packaged in bulk and has a pitch of 0.079" (2.00mm). It is an active product in the market and is commonly used in applications that require reliable and secure electrical connections, such as computer peripherals and industrial equipment.
