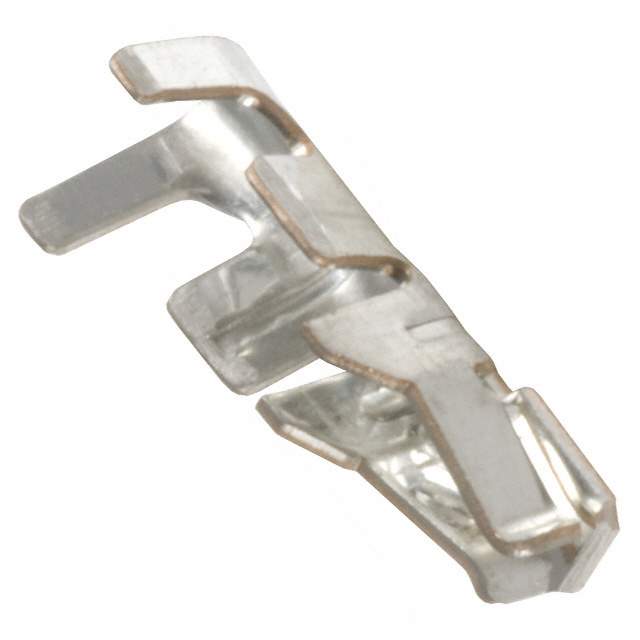

DF11-22SCF Real Image
Same model may have multiple batches, images only for reference.

DF11-22SCF

Part No DF11-22SCF
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN SOCKET 22AWG CRIMP TIN  /  Socket Contact Tin 22 AWG Crimp
Datasheet
DF11-22SCF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Contacts
Mfr Hirose Electric Co Ltd
Series DF11
Package Tape & Reel (TR),Cut Tape (CT)
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 22 AWG
Contact Finish Tin
Base Product Number DF11
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Names 543-0601-0-00,DF1122SCF,H2950CT,H2950TR,*DF11-22SCF
Standard Package 10,000
Win Source Part Number 1055327-DF11-22SCF
Ultra Librarian 3D Model Ultra Librarian DF11-22SCF CAD Model

Description

The Hirose Electric Co Ltd DF11-22SCF is a socket contact connector with a pitch of 0.016" (0.40mm).

  • Series: DF11
  • Pitch: 0.016" (0.40mm)
  • Wire Gauge: 22 AWG
  • Contact Finish: Tin
  • Termination: Crimp
  • Package: Tape & Reel or Cut Tape
  • Standard Package: 10,000 pieces
  • ECCN: EAR99
  • HTSUS: 8536.90.4000
