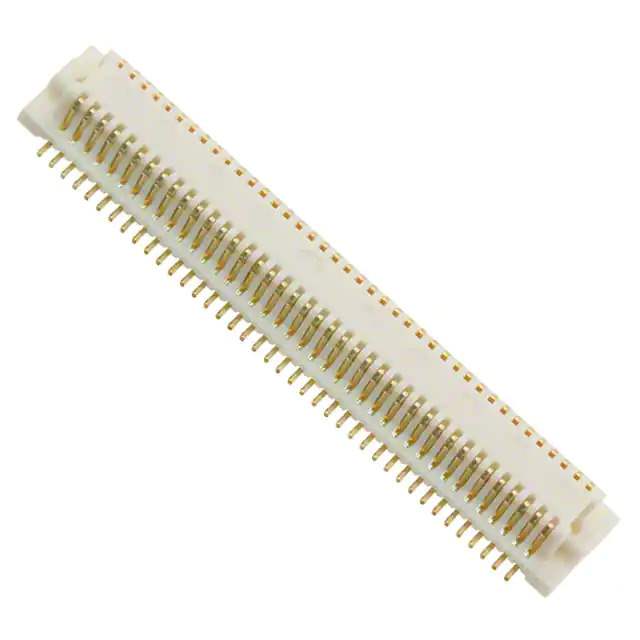

Same model may have multiple batches, images only for reference.

DF12(3.0)-80DS-0.5V(86)

Name: DF12(3.0)-80DS-0.5V(86)
Brand: Hirose Electric Co Ltd
SKU: 868380
Availability: InStock
Rating: 4.93 (59 reviews)

Get a Quote

Part No	DF12(3.0)-80DS-0.5V(86)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 80POS SMD GOLD / 80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet	DF12(3.0)-80DS-0.5V(86) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	DF12
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	80
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide, Solder Retention
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Mated Stacking Heights	3mm
Height Above Board	0.087" (2.20mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	868380-DF12(3.0)-80DS-0.5V(86)
Ultra Librarian 3D Model	Ultra Librarian DF12(3.0)-80DS-0.5V(86) CAD Model

Alternative Products

Description

The 868380-DF12(3.0)-80DS-0.5V(86) is a rectangular connector array from Hirose Electric Co Ltd.

Series: DF12
Positions: 80
Pitch: 0.020" (0.50mm)
Application: Board-to-Board
Contact Configuration: Center Strip Contact
Contact Finish: Gold
Contact Finish Thickness: 8.00µin (0.203µm)
Package: Tape & Reel
Height Above Board: 0.087" (2.20mm)
Mounting Type: Surface Mountable
Standard Package: 1,000 pcs
ECCN: EAR99
MSL Level: 1
HTSUS Code: 8536.69.4040
