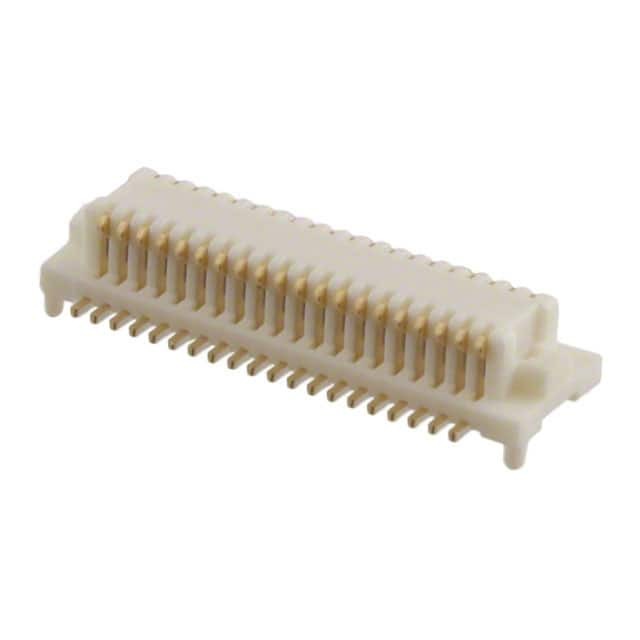

Same model may have multiple batches, images only for reference.

DF12A(3.0)-40DS-0.5V(81)

Name: DF12A(3.0)-40DS-0.5V(81)
Brand: Hirose Electric Co Ltd
SKU: 849236
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF12A(3.0)-40DS-0.5V(81)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 40POS SMD GOLD / 40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet	DF12A(3.0)-40DS-0.5V(81) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	DF12
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	40
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Mated Stacking Heights	3mm
Height Above Board	0.087" (2.20mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	849236-DF12A(3.0)-40DS-0.5V(81)
Ultra Librarian 3D Model	Ultra Librarian DF12A(3.0)-40DS-0.5V(81) CAD Model

Alternative Products

Description

The DF12A(3.0) series is a range of rectangular connectors designed for board to board connections. Hirose Electric Co Ltd manufactures the DF12A(3.0) series.

Positions: 40
Pitch: 0.020" (0.50mm)
Feature: Board Guide
Connector Type: Receptacle
Contacts: Center Strip
Contact Material: Gold Plated
Height Above Board: 0.087" (2.20mm)
Mounting Type: Surface Mount
Temperature Range: -40°C to 85°C
