Same model may have multiple batches, images only for reference.

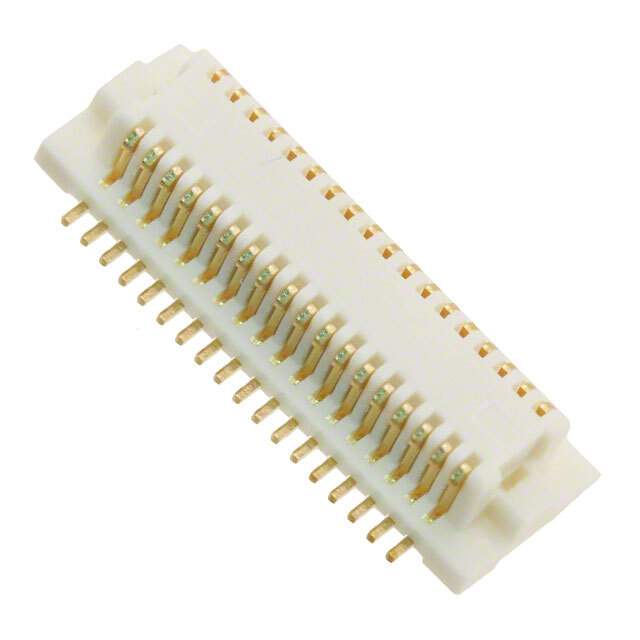

DF12C-36DS-0.5V(81) Real Image
Same model may have multiple batches, images only for reference.

DF12C-36DS-0.5V(81)

Part No DF12C-36DS-0.5V(81)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN RCPT 36POS SMD GOLD / 36 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF12
Package Tape & Reel (TR)
Product Status Obsolete
Connector Type Receptacle, Center Strip Contacts
Number of Positions 36
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 3.5mm, 4mm, 5mm
Height Above Board 0.106" (2.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 537-0206-3 81,537-0206-3-81
Standard Package 1,000
Win Source Part Number 1055328-DF12C-36DS-0.5V(81)
Ultra Librarian 3D Model Ultra Librarian DF12C-36DS-0.5V(81) CAD Model

Description

The DF12 series is a high-quality rectangular connector array that is perfect for edge type mezzanine (board to board) connections. The DF12C-36DS-0.5V(81) is manufactured by Hirose Electric Co Ltd.

  • Positions: 36
  • Pitch: 0.020" (0.50mm)
  • Connector Type: Receptacle with center strip contacts
  • Height Above Board: 0.106" (2.70mm)
  • Package: Tape & reel
  • Mounting Type: SMD (SMT)
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
