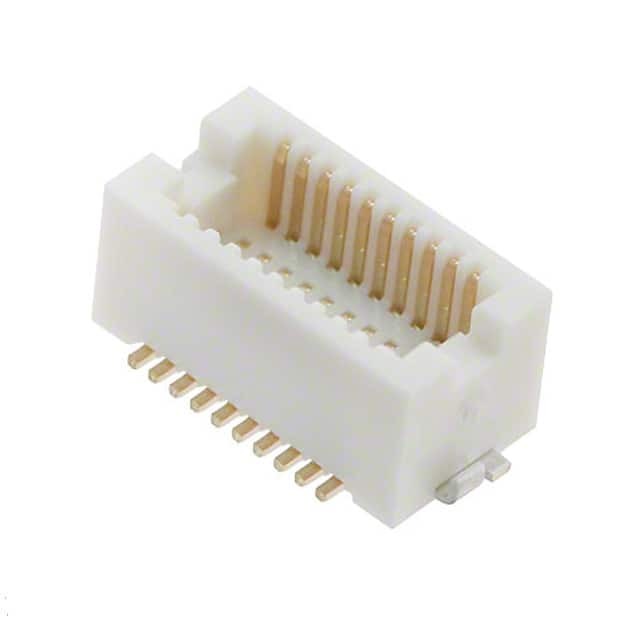

DF12E(3.5)-20DP-0.5V(81)
Same model may have multiple batches, images only for reference.

DF12E(3.5)-20DP-0.5V(81)

Part No DF12E(3.5)-20DP-0.5V(81)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 20POS SMD GOLD / 20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF12
Package Tape & Reel
Product Status Obsolete
Connector Type Header, Outer Shroud Contacts
Number of Positions 20
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 3.5mm
Height Above Board 0.110" (2.80mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 868412-DF12E(3.5)-20DP-0.5V(81)
Ultra Librarian 3D Model Ultra Librarian DF12E(3.5)-20DP-0.5V(81) CAD Model

Description

The 868412-DF12E(3.5)-20DP-0.5V(81) is a mezzanine connector from Hirose Electric Co Ltd's DF12 series.

  • Connector Type: Rectangular Connector Array
  • Positions: 20
  • Pitch: 0.020" (0.50mm)
  • Connector Style: Header with Outer Shroud Contacts
  • Mounting Type: Surface Mount
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Mated Stacking Height: 3.5mm
  • Height Above Board: 0.110" (2.80mm)
  • Packaging: Tape & Reel
  • Standard Package: 1,000 pcs
