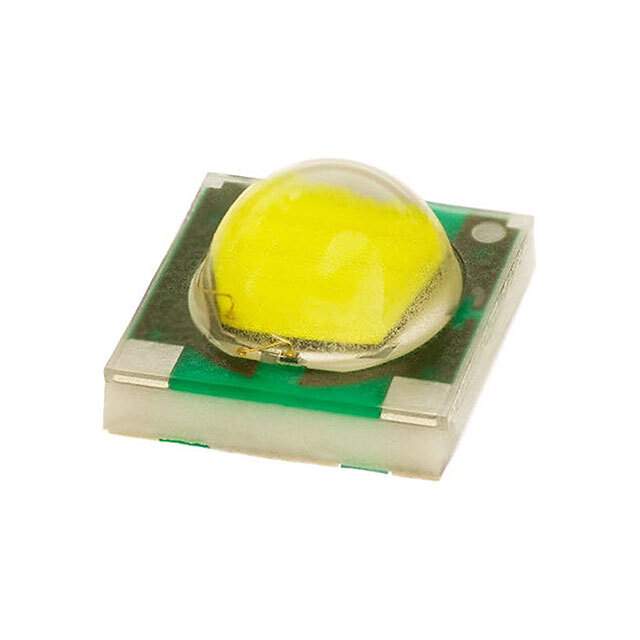

XPGWHT-L1-0000-00DE5 Real Image
Same model may have multiple batches, images only for reference.

XPGWHT-L1-0000-00DE5

Part No XPGWHT-L1-0000-00DE5
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XLAMP NEUTRAL WHT 4000K 2SMD / LED Lighting series White, Neutral 4000K 2.9V 350mA 125° 1414 (3535 Metric)
Datasheet
XPGWHT-L1-0000-00DE5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr CreeLED, Inc.
Series XLamp® XP-G
Package Tape & Reel (TR)
Color White, Neutral
CCT (K) 4000K
Flux @ 25°C, Current - Test 111lm (107lm ~ 114lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.9V
Lumens/Watt @ Current - Test 109 lm/W
CRI (Color Rendering Index) 75 (Typ)
Current - Max 1.5A
Viewing Angle 125°
Mounting SMD (SMT)
Package / Case 1414 (3535 Metric)
Dimension 0.136" L x 0.136" W (3.45mm x 3.45mm)
Height - Seated (Max) 0.084" (2.13mm)
Thermal Resistance of Package 4°C/W
Base Product Number XPGWHT
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 1,000
Win Source Part Number 1209577-XPGWHT-L1-0000-00DE5
Ultra Librarian 3D Model Ultra Librarian XPGWHT-L1-0000-00DE5 CAD Model

Description

The XPGWHT-L1-0000-00DE5 is a white, neutral LED lighting product from CreeLED, Inc.

  • Series: XLamp® XP-G
  • Current Rating: 1.5A
  • Viewing Angle: 125°
  • Forward Voltage: 2.9V
  • Color Rendering Index (Typ): 75
  • Thermal Resistance: 4°C/W
  • CCT: 4000K
  • Flux @ 25°C, Current - Test: 111lm (107lm ~ 114lm)
  • Lumens/Watt @ Current - Test: 109 lm/W
  • Mounting Type: SMD (SMT)
  • Package/Case: 1414 (3535 Metric)
  • Dimensions: 0.136" L x 0.136" W (3.45mm x 3.45mm)
