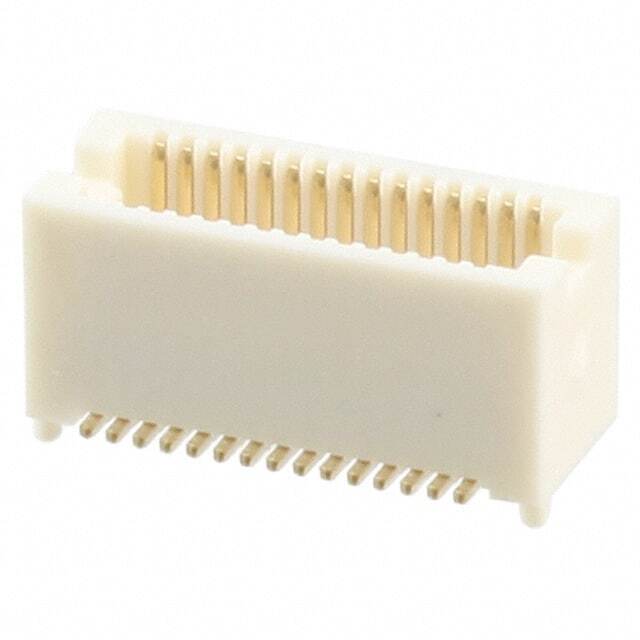

Same model may have multiple batches, images only for reference.

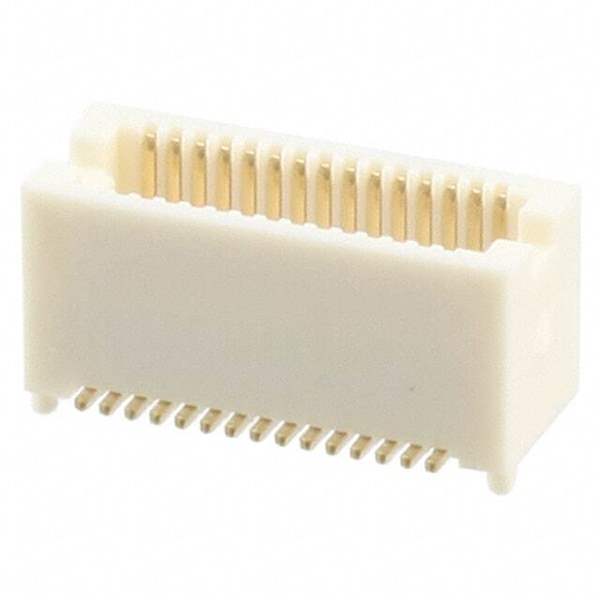

DF12E(5.0)-30DP-0.5V(81)

Name: DF12E(5.0)-30DP-0.5V(81)
Brand: Hirose Electric Co Ltd
SKU: 846249
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF12E(5.0)-30DP-0.5V(81)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HDR 30POS SMD GOLD / 30 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	DF12
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Header, Outer Shroud Contacts
Number of Positions	30
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Mated Stacking Heights	5mm
Height Above Board	0.169" (4.30mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	846249-DF12E(5.0)-30DP-0.5V(81)
Ultra Librarian 3D Model	Ultra Librarian DF12E(5.0)-30DP-0.5V(81) CAD Model

Alternative Products

Description

The 846249-DF12E(5.0)-30DP-0.5V(81) is a header connector from Hirose Electric Co Ltd.

Manufacturer: Hirose Electric Co Ltd
Series: DF12
Number of Positions: 30
Pitch: 0.020" (0.50mm)
Features: Outer Shroud Contacts
Mounting Type: Surface Mount
Height Above Board: 0.169" (4.30mm)
Contact Finish: Gold
Contact Finish Thickness: 8.00µin (0.203µm)
Packaging: Tape and Reel
Standard Package: 1,000 pcs
Application: Mezzanine (Board to Board)
