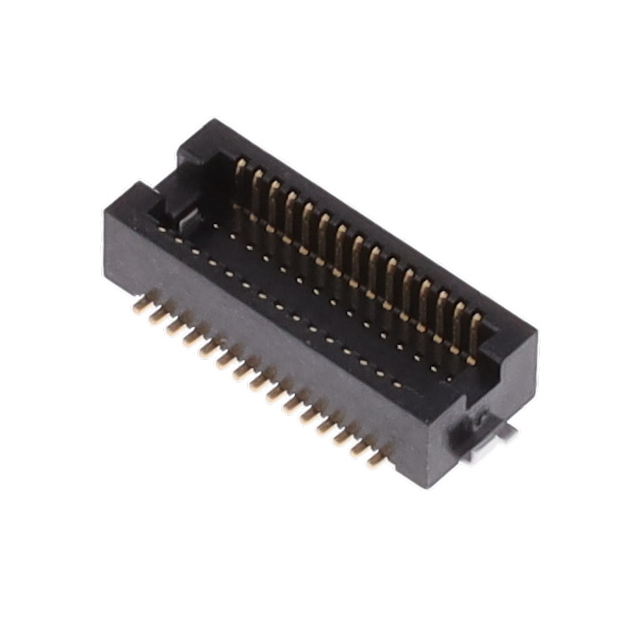

DF12NB(3.0)-30DP-0.5V(51) Real Image
Same model may have multiple batches, images only for reference.

DF12NB(3.0)-30DP-0.5V(51)

Part No DF12NB(3.0)-30DP-0.5V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Datasheet
DF12NB(3.0)-30DP-0.5V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF12
Package Tape & Reel
Connector Type Header, Outer Shroud Contacts
Number of Positions 30
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 3mm
Height Above Board 0.091" (2.30mm)
Base Product Number DF12N
Other Names 537-0389-0 51,26-DF12NB(3.0)-30DP-0.5V(51)DKR,26-DF12NB(3.0)-30DP-0.5V(51)CT,537-0389-0-51,26-DF12NB(3.0)-30DP-0.5V(51)TR
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294014-DF12NB(3.0)-30DP-0.5V(51)
Ultra Librarian 3D Model Ultra Librarian DF12NB(3.0)-30DP-0.5V(51) CAD Model

Description

The Hirose Electric Co Ltd DF12NB(3.0)-30DP-0.5V(51) is a connector with 30 positions and a pitch of 0.020" (0.50mm).

  • Series: DF12
  • Positions: 30
  • Pitch: 0.020" (0.50mm)
  • Features: Solder Retention
  • Connector Type: Header, Outer Shroud Contacts
  • Number of Rows: Two
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00μin (0.203μm)
  • Package: Tape and Reel
  • Standard Package: 1,000
  • Mated Stacking Heights: 3mm
  • Height Above Board: 0.091" (2.30mm)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
  • Base Product Number: DF12N
