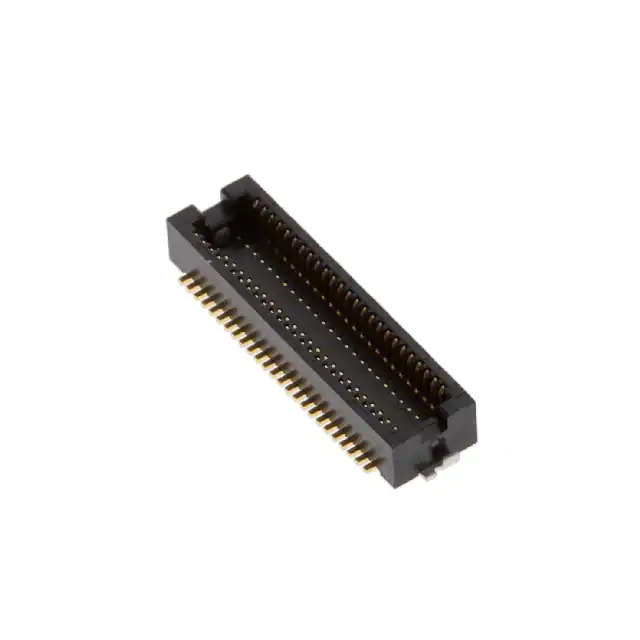

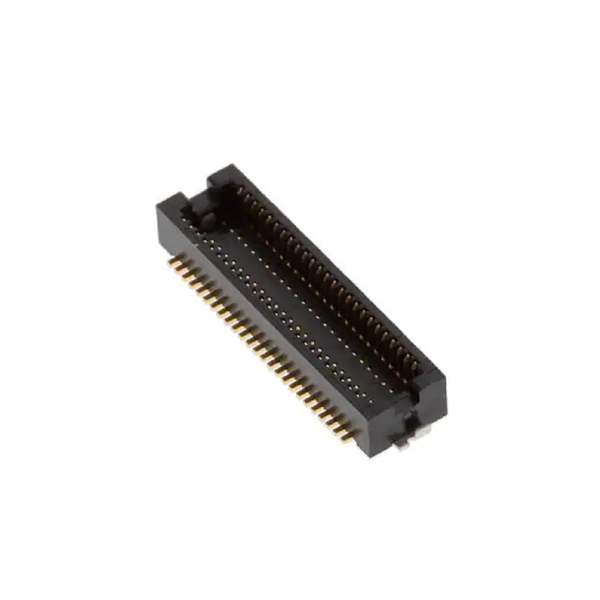

DF12NB(3.0)-50DP-0.5V(51) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

DF12NB(3.0)-50DP-0.5V(51)

Part No DF12NB(3.0)-50DP-0.5V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 50POS SMD GOLD / 50 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
DF12NB(3.0)-50DP-0.5V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF12
Package Tape & Reel
Product Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 50
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 3mm
Height Above Board 0.091" (2.30mm)
Base Product Number DF12N
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364488-DF12NB(3.0)-50DP-0.5V(51)
Ultra Librarian 3D Model Ultra Librarian DF12NB(3.0)-50DP-0.5V(51) CAD Model

Description

The Hirose Electric Co Ltd DF12NB(3.0)-50DP-0.5V(51) is a rectangular connector array with edge type and mezzanine (board to board) configuration.

  • Manufacturer: Hirose Electric Co Ltd
  • Series: DF12
  • Connector Type: Rectangular Connector Array
  • Configuration: Edge, Mezzanine (Board to Board)
  • Product Status: Active
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Positions: 50
  • Rows: 2
  • Pitch: 0.020" (0.50mm)
  • Mated Stacking Heights: 3mm
  • Height Above Board: 0.091" (2.30mm)
  • Features: Solder Retention
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00μin (0.203μm)
  • HTSUS Code: 8536.69.4040
  • ECCN: EAR99
  • REACH: Unaffected
