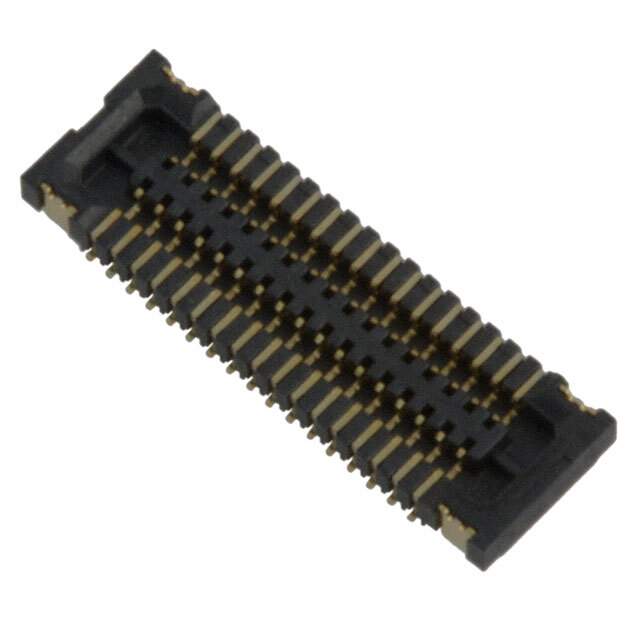

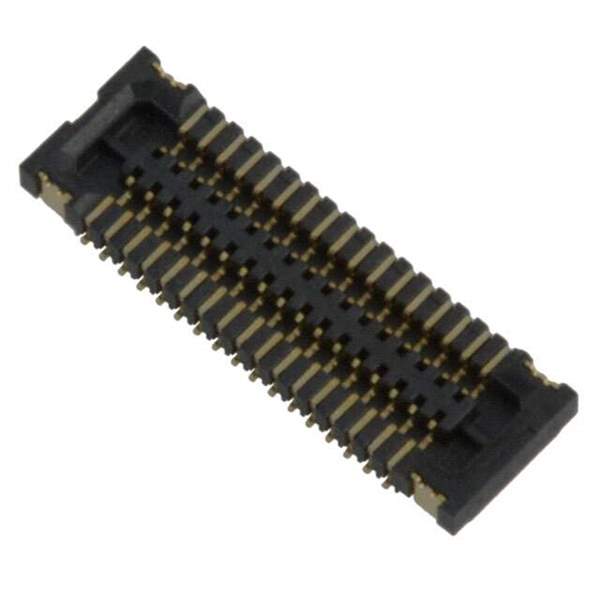

BM20B(0.8)-34DS-0.4V(51) Real Image
Same model may have multiple batches, images only for reference.

BM20B(0.8)-34DS-0.4V(51)

Part No BM20B(0.8)-34DS-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RECEPT 34POS 0.4MM SMD
Datasheet
BM20B(0.8)-34DS-0.4V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 34
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2μin (0.05μm)
Mated Stacking Heights 0.8mm
Height Above Board 0.031" (0.80mm)
Win Source Part Number 1023701-BM20B(0.8)-34DS-0.4V(51)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 8k pcs
Ultra Librarian 3D Model Ultra Librarian BM20B(0.8)-34DS-0.4V(51) CAD Model

Description

The Hirose Electric Co Ltd BM20B(0.8)-34DS-0.4V(51) connector is a receptacle center strip contact with 34 positions.

  • Connector Type: Receptacle
  • Contact Type: Center Strip
  • Positions: 34
  • Pitch: 0.016" (0.40mm)
  • Height Above Board: 0.031" (0.80mm)
  • Solder Retention: Yes
  • Contact Finish Thickness: 2μin (0.05μm)
  • Packaging: Reel
  • Quantity: 8k pcs
  • Mounting Technology: Surface Mount Technology (SMT)
  • Supply and Demand Status: Balance
