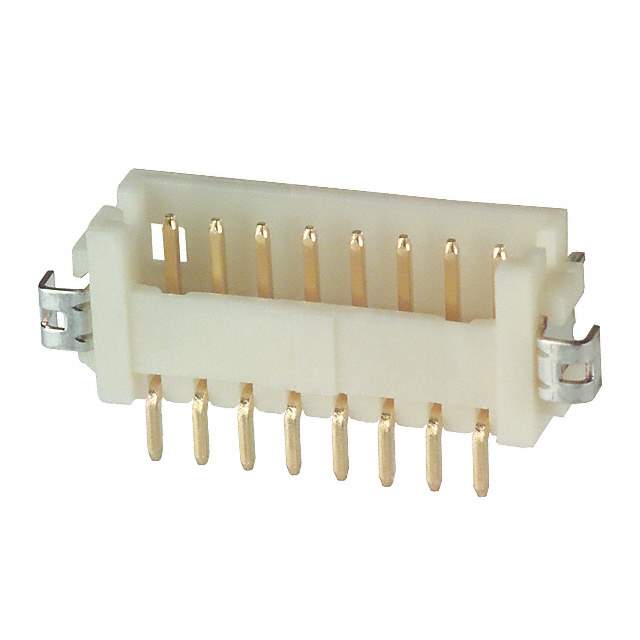

DF13A-8P-1.25H(51) Real Image
Same model may have multiple batches, images only for reference.

DF13A-8P-1.25H(51)

Part No DF13A-8P-1.25H(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 8POS 1.25MM
Datasheet
DF13A-8P-1.25H(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features Connector Header Surface Mount, Right Angle 8 position 0.049" (1.25mm)
Manufacturer Hirose Electric Co Ltd
Series DF13
Package Reel - TR
Operating Temperature Range -35°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name DF13A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 536-0307-4-51, DF13A-8P-1.25H(51)-ND, H125993DKR, H125993CT, H125993TR
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916951-DF13A-8P-1.25H(51)
Ultra Librarian 3D Model Ultra Librarian DF13A-8P-1.25H(51) CAD Model

Description

The Hirose Electric Co Ltd DF13A-8P-1.25H(51) is a connector header that is surface mountable and has a right angle. It has eight positions and a pitch of 0.049 inches (1.25mm).

  • Positions: Eight
  • Pitch: 0.049 inches (1.25mm)
  • Series: DF13
  • Operating Temperature Range: -35°C to 85°C
  • Packaging: Reel
  • Quantity Per Reel: 1000
  • Mounting: Surface Mount, Right Angle
  • Family Name: DF13A
  • Connector Category: Header
  • Supply and Demand Status: Balanced
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 25 weeks
  • HTSUS Code: 8536.69.4040
