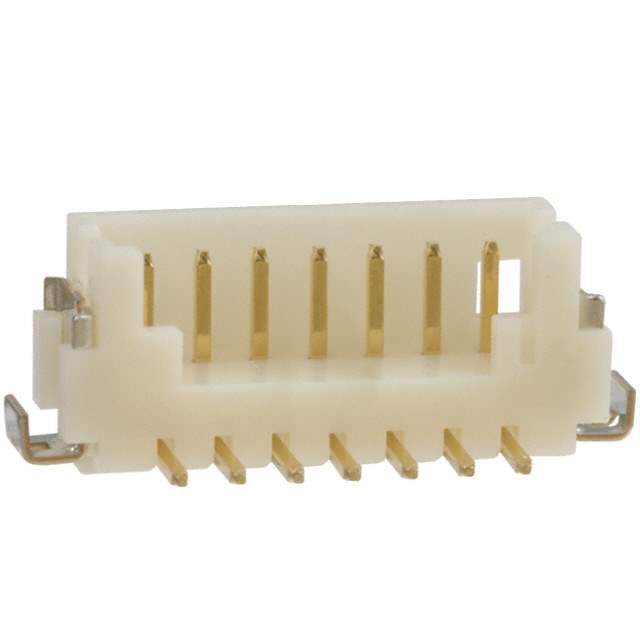

DF13B-7P-1.25V(51) Real Image
Same model may have multiple batches, images only for reference.

DF13B-7P-1.25V(51)

Part No DF13B-7P-1.25V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 7POS 1.25MM / Connector Header Surface Mount 7 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Mated Stacking Heights 5.8mm
Base Product Number DF13B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 536-0056-6-51,DF13B7P125V51,*DF13B-7P-1.25V(51)CT-ND,-DF13B-7P-1.25V(51)DKR,H121954TR,*DF13B-7P-1.25V(51)DKR-ND,H121954CT,*DF13B-7P-1.25V(51)-ND,-DF13B-7P-1.25V(51)-ND,-DF13B-7P-1.25V(51),-DF13B-7P-1.25V(51)CT,H121954DKR
Standard Package 1,000
Win Source Part Number 1211671-DF13B-7P-1.25V(51)
Ultra Librarian 3D Model Ultra Librarian DF13B-7P-1.25V(51) CAD Model

Description

The Hirose Electric Co Ltd 1211671-DF13B-7P-1.25V(51) is a rectangular connector header with a male pin contact type.

  • Pitch: 0.049 inches (1.25mm)
  • Positions: 7
  • Features: Board Guide, Solder Retention
  • Mounting: Surface Mount Device (SMD)
  • Fastening Type: Detent Lock
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Current Rating: 1A
  • Voltage Rating: 150V
