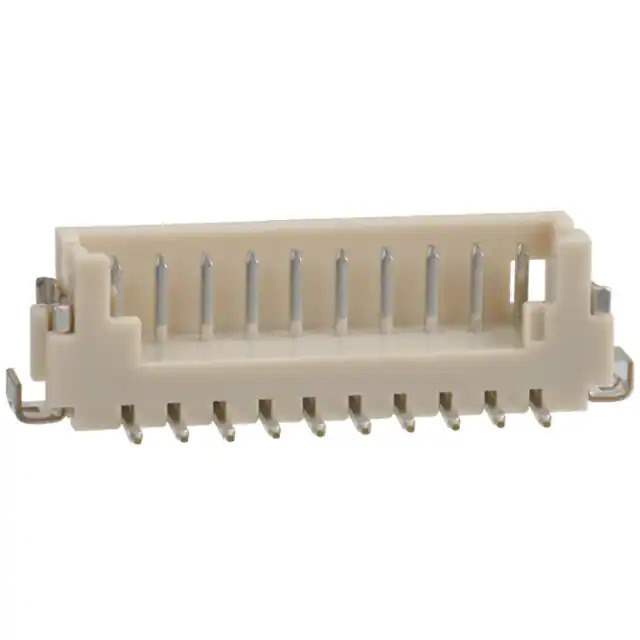

Same model may have multiple batches, images only for reference.

DF13C-10P-1.25V(21)

Name: DF13C-10P-1.25V(21)
Brand: Hirose Electric Co Ltd
SKU: 849354
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF13C-10P-1.25V(21)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 1.25MM
Datasheet	DF13C-10P-1.25V(21) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF13
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	10
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Detent Lock
Insulation Height	0.189" (4.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150V
Mated Stacking Heights	5.8mm
Base Product Number	DF13C
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	849354-DF13C-10P-1.25V(21)
Ultra Librarian 3D Model	Ultra Librarian DF13C-10P-1.25V(21) CAD Model

Alternative Products

Description

The 849354-DF13C-10P-1.25V(21) is a male pin header connector manufactured by Hirose Electric Co Ltd.

Series: DF13
Category: connectors and interconnects
Positions: 10
Features: solder retention
Connector Type: single-row header connector
Termination: surface mount
Contact Material: brass
Voltage Rating: 150V
Fastening Type: detent lock
Packaging: tape and reel
Current Rating: 1A
Temperature Range: -35°C to 85°C
HTSUS Code: 8536.69.4040
Status: active
