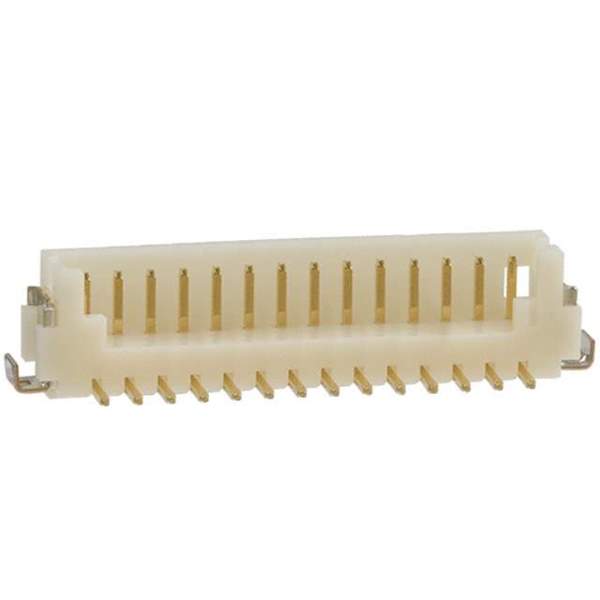

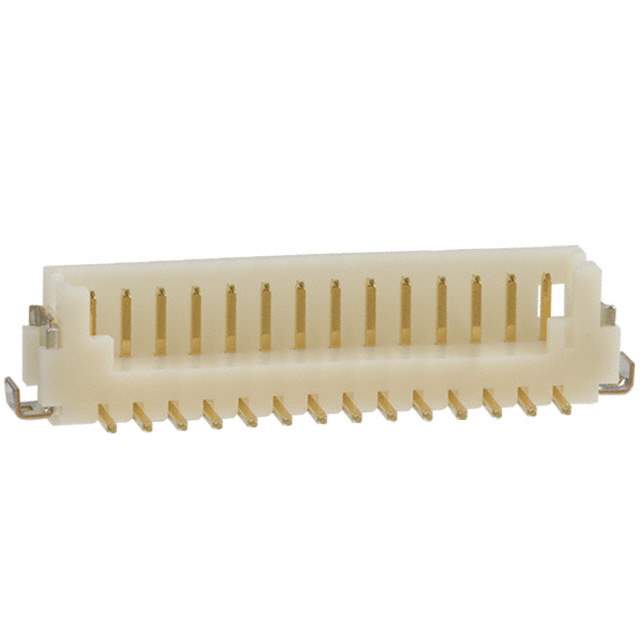

DF13C-14P-1.25V(51) Real Image
Same model may have multiple batches, images only for reference.

DF13C-14P-1.25V(51)

Part No DF13C-14P-1.25V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 14POS 1.25MM / Connector Header Surface Mount 14 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 14
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Mated Stacking Heights 5.8mm
Base Product Number DF13C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H121958DKR,H121958TR,DF13C14P125V51,536-0413-1-51,H121958CT
Standard Package 1,000
Win Source Part Number 1055331-DF13C-14P-1.25V(51)
Ultra Librarian 3D Model Ultra Librarian DF13C-14P-1.25V(51) CAD Model

Description

The DF13C-14P-1.25V(51) is a connector, interconnect that is part of the DF13 series.

  • Contact Type: Solder retention
  • Voltage Rating: 150V
  • Material: Brass
  • Connection Style: Board to cable/wire
  • Pitch-Mating: 0.049 inches (1.25mm)
  • Shape: Square
  • Design: Shrouded-3 wall
