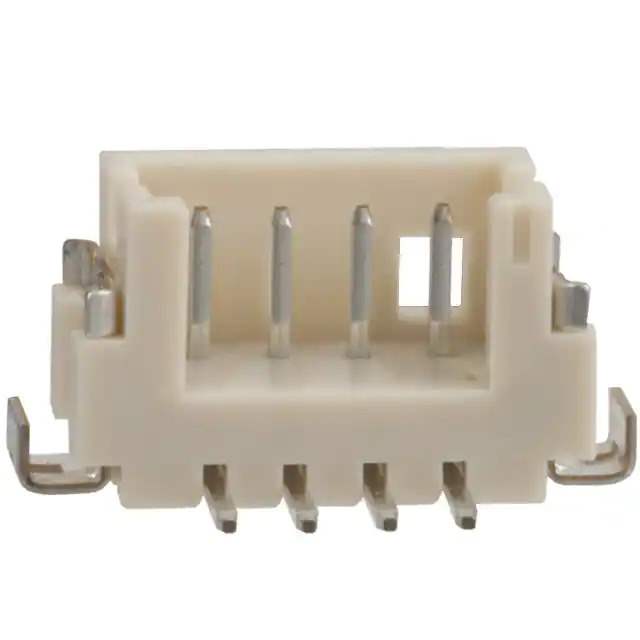

DF13C-4P-1.25V(21) Real Image
Same model may have multiple batches, images only for reference.

DF13C-4P-1.25V(21)

Part No DF13C-4P-1.25V(21)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 4POS 1.25MM / Connector Header Surface Mount 4 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Mated Stacking Heights 5.8mm
Base Product Number DF13C
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849888-DF13C-4P-1.25V(21)
Ultra Librarian 3D Model Ultra Librarian DF13C-4P-1.25V(21) CAD Model

Description

The 849888-DF13C-4P-1.25V(21) is a male pin header connector. Bolded product name: 849888-DF13C-4P-1.25V(21). Manufacturer is Hirose Electric Co Ltd.

  • Series: DF13
  • Application: Rectangular Connector
  • Positions: 4
  • Features: Solder Retention
  • Row Count: Single
  • Fastening Type: Detent Lock
  • Package: Tape & Reel
  • Standard Package Quantity: 1,000 pieces
  • Contact Material: Brass
  • Mating Contact Finish: Tin (39.4μin or 1.00μm)
  • Post Contact Finish: Tin
  • Insulation Material: Polyamide (PA), Nylon
  • Insulation Color: Beige
  • Board-to-Cable/Wire Pitch: 0.049" (1.25mm)
  • Voltage Rating: 150V
  • Current Rating: 1A
  • Mated Stacking Height: 5.8mm
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
  • Base Product Number: DF13C
  • Product Status: Active
