Same model may have multiple batches, images only for reference.

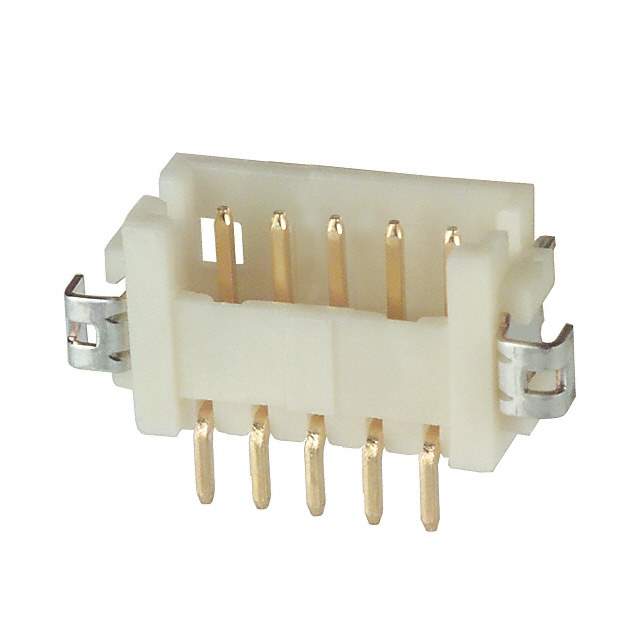

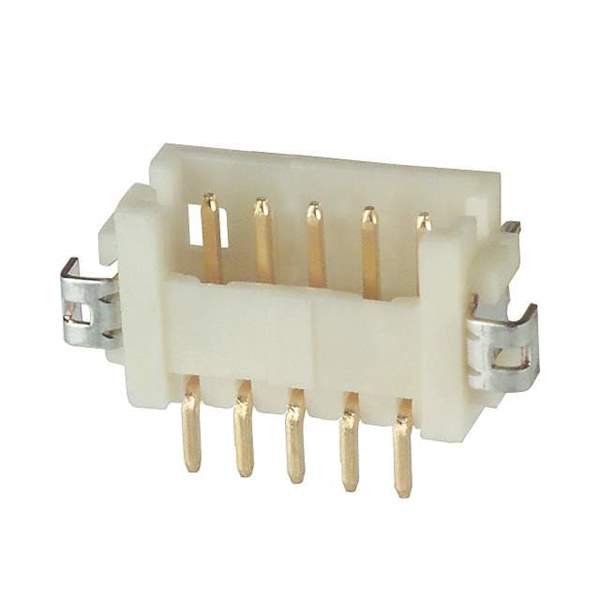

DF13A-5P-1.25H(51) Real Image
Same model may have multiple batches, images only for reference.

DF13A-5P-1.25H(51)

Part No DF13A-5P-1.25H(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.142" (3.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Base Product Number DF13A
Other Names DF13A-5P-1.25H(51),536-0304-6-51,H125990DKR,H125990CT,H125990TR
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293331-DF13A-5P-1.25H(51)
Ultra Librarian 3D Model Ultra Librarian DF13A-5P-1.25H(51) CAD Model

Description

The DF13A-5P-1.25H(51) is a male pin header connector manufactured by Hirose Electric Co Ltd.

  • Series: DF13
  • Design: Board to cable/wire applications
  • Wall Type: Shrouded - 4 wall
  • Mounting Type: Surface Mount, Right Angle
  • Fastening Type: Detent Lock
  • Pitch: 0.049 inches
  • Contact Finish: Gold
  • Current Rating: 1A
  • Operating Temperature Range: -35°C to 85°C
  • Package: Tape & Reel
  • Standard Package: 1000
