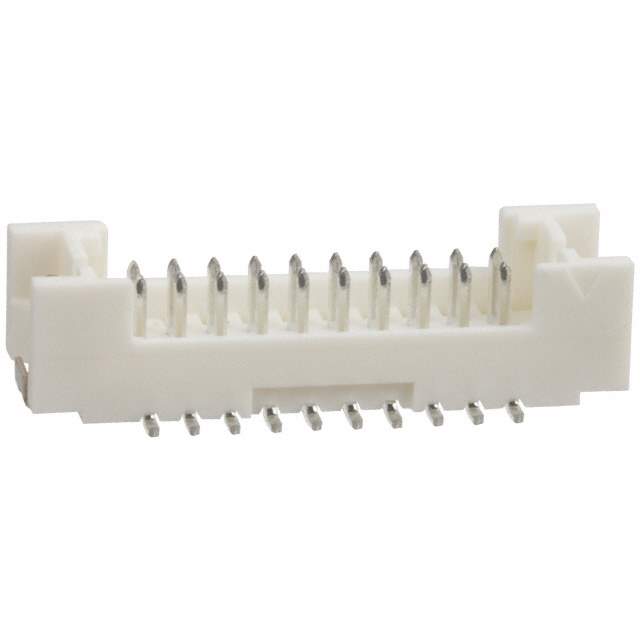

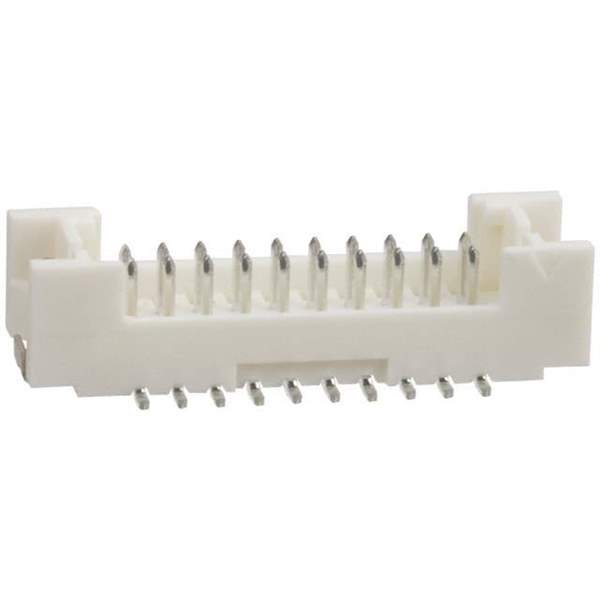

DF13EA-20DP-1.25V(25)

Get a Quote

Part No	DF13EA-20DP-1.25V(25)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 1.25MM / Connector Header Surface Mount 20 position 0.049" (1.25mm)
Datasheet	DF13EA-20DP-1.25V(25) Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF13
Package	Tube
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.049" (1.25mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.094" (2.40mm)
Insulation Height	0.189" (4.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Copper
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Material	Brass
Insulation Material	Polyamide (PA) , Nylon
Features	Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150V
Mated Stacking Heights	5.8mm
Standard Package	26
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1351370-DF13EA-20DP-1.25V(25)
Ultra Librarian 3D Model	Ultra Librarian DF13EA-20DP-1.25V(25) CAD Model

Alternative Products

Description

The DF13EA-20DP-1.25V(25) header connector from Hirose Electric Co Ltd is a rectangular connector with 20 positions loaded on a 2-row configuration.

Connector Type: Rectangular Connector
Number of Positions Loaded: 20
Number of Rows: 2
Pitch: 1.25mm
Contact Length: 2.40mm
Voltage Rating: 150V
Current Rating: 1A
Fastening Type: Push-Pull
Termination: Solder
Contact Material: Brass
Contact Finish: Tin-Copper
Contact Finish Thickness: 1.00µm
Design: Shrouded 4-Wall
Row Spacing: 1.25mm
Flammability Rating: UL94 V-0
Operating Temperature: -35°C to 85°C
Application: Board to Cable/Wire
