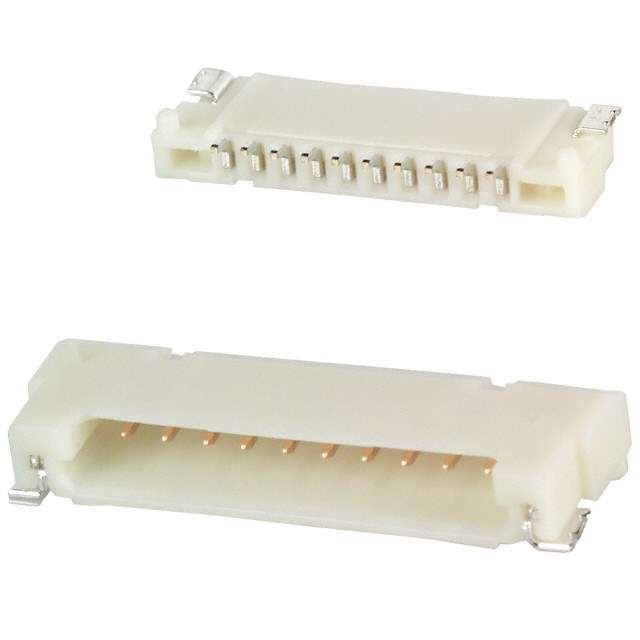

DF14-10P-1.25H(55) Real Image
Same model may have multiple batches, images only for reference.

DF14-10P-1.25H(55)

Part No DF14-10P-1.25H(55)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER 10POS 1.25MM R/A SMD
Datasheet
DF14-10P-1.25H(55) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.086" (2.20mm)
Insulation Height 0.098" (2.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.9μin (0.10μm)
Contact Finish - Post Tin-Copper
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Solder Retention
Temperature Range - Operating -35°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating 1A
Voltage Rating 150V
Mated Stacking Heights 2.5mm
Contact Finish Thickness - Post 39μin (1.00μm)
Win Source Part Number 1032884-DF14-10P-1.25H(55)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 28
Ultra Librarian 3D Model Ultra Librarian DF14-10P-1.25H(55) CAD Model

Description

The Hirose Electric Co Ltd DF14-10P-1.25H(55) header connector is a 10-position male pin connector that is designed for board to cable/wire applications.

  • Fastening Type: Push-Pull
  • Voltage Rating: 150V
  • Current Rating: 1A
  • Insulation Material: Polyamide (PA), Nylon
  • Flammability Rating: UL94 V-0
  • Mating Stacking Height: 2.5mm
  • Pitch Mating: 0.049 inches (1.25mm)
  • Contact Finish (Mating): Gold, 3.9μin (0.10μm)
  • Contact Finish (Post): Tin-Copper, 39μin (1.00μm)
  • Shroud: 4 Walls
  • Insulation Height: 0.098 inches (2.50mm)
  • Operating Temperature: -35°C to 85°C
  • Mounting Type: Surface Mount
  • Orientation: Right Angle
