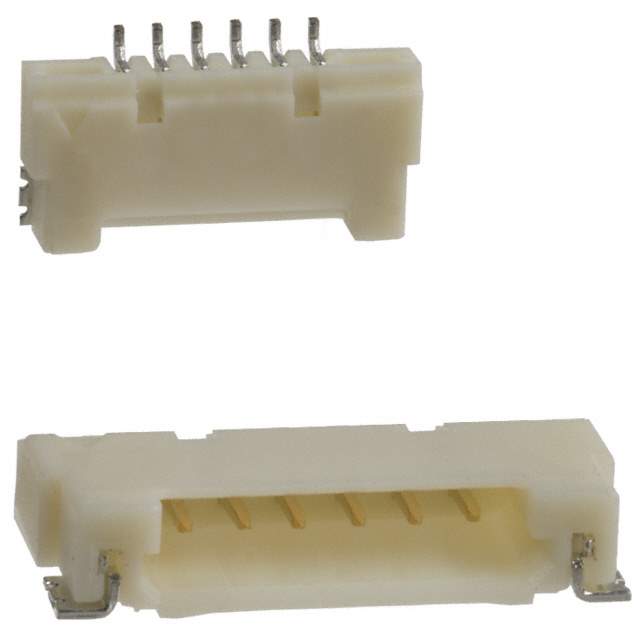

DF14-6P-1.25H(54) Real Image
Same model may have multiple batches, images only for reference.

DF14-6P-1.25H(54)

Part No DF14-6P-1.25H(54)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER SMD R/A 6POS 1.25MM / Connector Header Surface Mount, Right Angle 6 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF14
Package Tube
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.086" (2.20mm)
Insulation Height 0.098" (2.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.94µin (0.100µm)
Contact Finish - Post Tin-Copper
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150VAC
Contact Finish Thickness - Post 39.4µin (1.00µm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 538-0025-5-54,H126502,DF14-6P-1.25H(54)-ND
Standard Package 39
Win Source Part Number 1001756-DF14-6P-1.25H(54)
Ultra Librarian 3D Model Ultra Librarian DF14-6P-1.25H(54) CAD Model

Description

The Hirose Electric Co Ltd DF14 series connector is an ideal choice for board to cable/wire connections.

  • Type: Male pin header connector
  • Positions Loaded: Six
  • Rows: Single
  • Features: Board guide and solder retention
  • Fastening Type: Push-pull
  • Contact Material: Brass
  • Contact Finish: Gold
  • Voltage Rating: 150VAC
  • Operating Temperature: -35°C to 85°C
  • Insulation Material: Polyamide (PA), nylon
  • Insulation Color: Beige
  • Shrouded: Four walls
  • Mounting Type: Surface mount, right-angle
  • Package: Tube
  • Standard Package: 39
