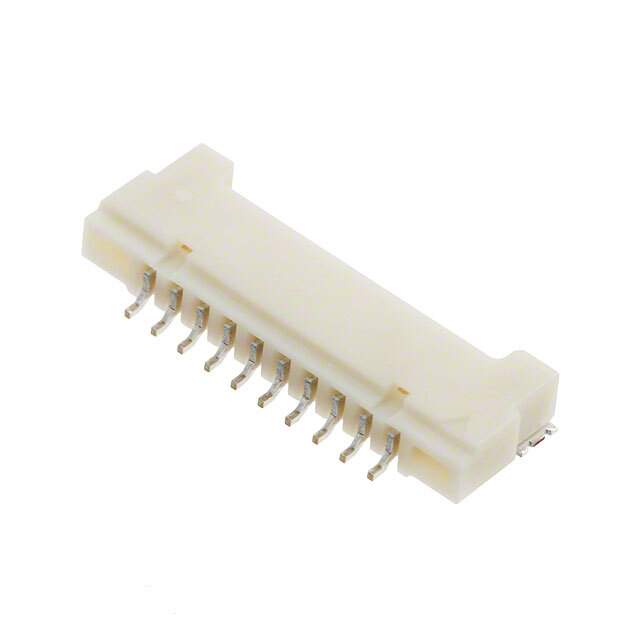

DF14A-10P-1.25H(56) Real Image
Same model may have multiple batches, images only for reference.

DF14A-10P-1.25H(56)

Part No DF14A-10P-1.25H(56)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 10POS 1.25MM / Connector Header Surface Mount, Right Angle 10 position 0.049" (1.25mm)
Datasheet
DF14A-10P-1.25H(56) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF14
Package Tape & Reel
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.086" (2.20mm)
Insulation Height 0.098" (2.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.90µin (0.099µm)
Contact Finish - Post Tin-Copper
Contact Material Brass
Insulation Material Polyamide (PA) , Nylon
Features Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Contact Finish Thickness - Post 39.4µin (1.00µm)
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340056-DF14A-10P-1.25H(56)
Ultra Librarian 3D Model Ultra Librarian DF14A-10P-1.25H(56) CAD Model

Description

The Hirose Electric Co Ltd DF14A-10P-1.25H(56) is a rectangular connector header with male pins.

  • Manufacturer: Hirose Electric Co Ltd
  • Product Name: DF14A-10P-1.25H(56)
  • Positions: 10
  • Pitch: 0.049 inches
  • Mounting Type: Surface Mount, Right Angle
  • Wall Type: Shrouded-4 Wall
  • Contact Finish: Gold
  • Mating Contact Finish Thickness: 3.90µin (0.099µm)
  • Post Contact Finish Thickness: 39.4µin (1.00µm)
  • Current Rating: 1A
  • Voltage Rating: 150V
  • Contact Type: Male Pin
  • Packaging: Tape & Reel
  • Standard Package: 1,000
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Status: Obsolete
