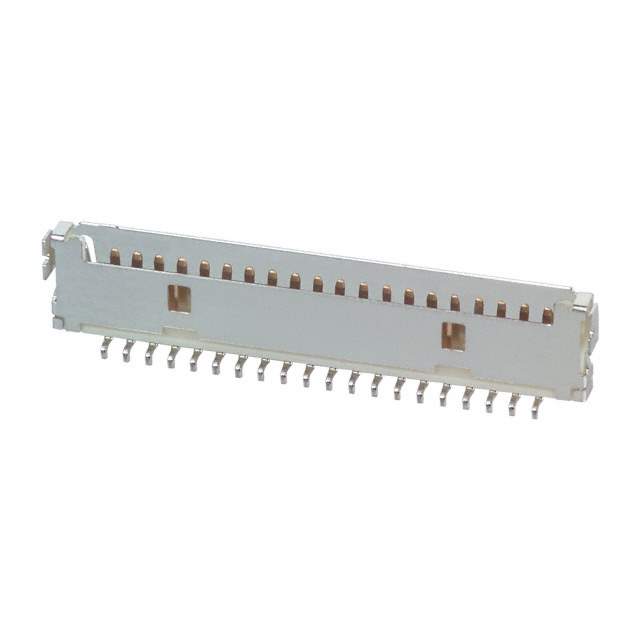

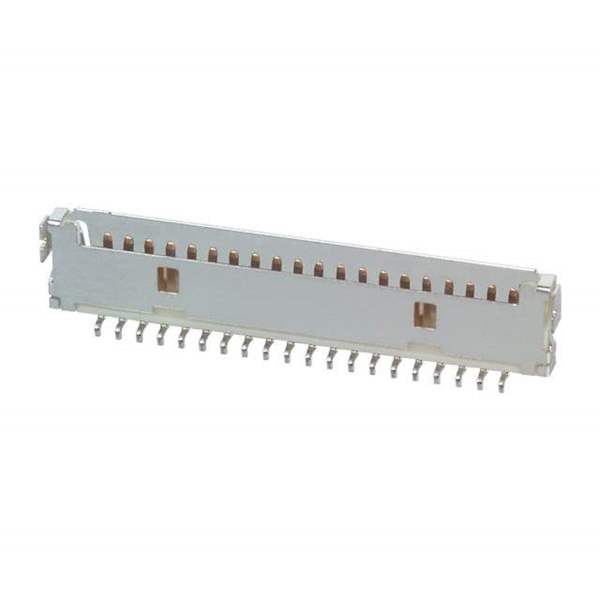

Same model may have multiple batches, images only for reference.

DF19G-20P-1H(59)

Name: DF19G-20P-1H(59)
Brand: Hirose Electric Co Ltd
SKU: 447831
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF19G-20P-1H(59)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER 20POS 1MM R/A SMD
Datasheet	DF19G-20P-1H(59) Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Status	Obsolete(EOL)
Connector Type	Receptacle
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Mounting	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Friction Lock
Insulation Height	0.065" (1.65mm)
Contact Finish - Mating	Gold
Insulation Material	Polyamide (PA), Nylon
Features	Glow Wire Compliant, Shielded, Solder Retention
Temperature Range - Operating	-35°C to 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Voltage Rating	100V
Mated Stacking Heights	1.65mm
Win Source Part Number	1032898-DF19G-20P-1H(59)
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	1k pcs
Ultra Librarian 3D Model	Ultra Librarian DF19G-20P-1H(59) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF19G-20P-1H(59) is a receptacle connector with 20 positions and male pin contact type.

Voltage Rating: 100V
Mounting Type: surface mount, right angle
Insulation Material: polyamide (PA) or nylon
Features: glow wire compliant, shielded, solder retention
Fastening Type: friction lock
Flammability Rating: UL94 V-0
Contact Finish-Mating: gold
Pitch-Mating: 0.039 inches (1.00mm)
Shrouding: 3 wall shrouding
Application: board to cable/wire
Temperature Range: -35°C to 85°C
Status: obsolete (EOL)
Popularity: medium
Packaging: reel-tr
Quantity: 1k pcs
